Aeonic Brick Trim 1×10

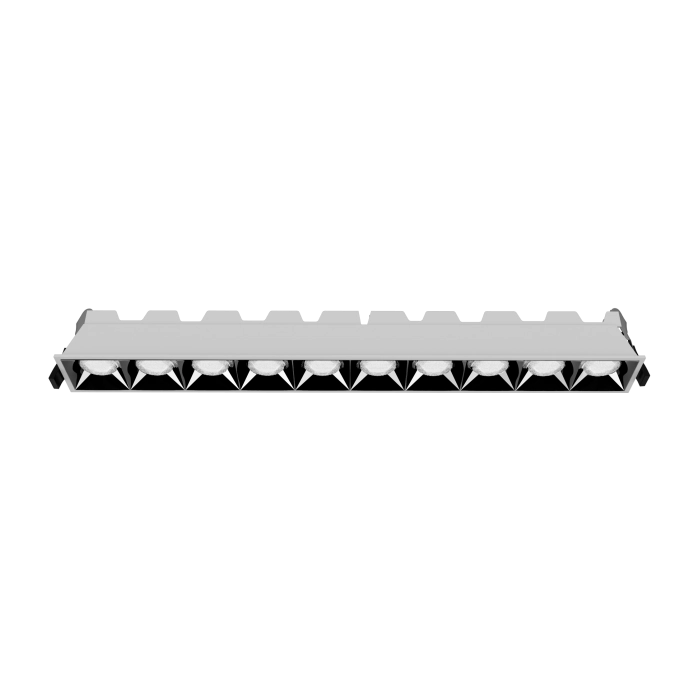

  • Gallery Image

Aeonic Brick Trim 1×10

Interior Spaces

The Aeonic Brick Trim 1×10 delivers exceptional linear illumination through ten precision-aligned diamond reflectors. Engineered for long-run installations, it offers seamless brightness continuity and precise beam control, suitable for large commercial, museum, or retail environments

Enquire Now

Specifications

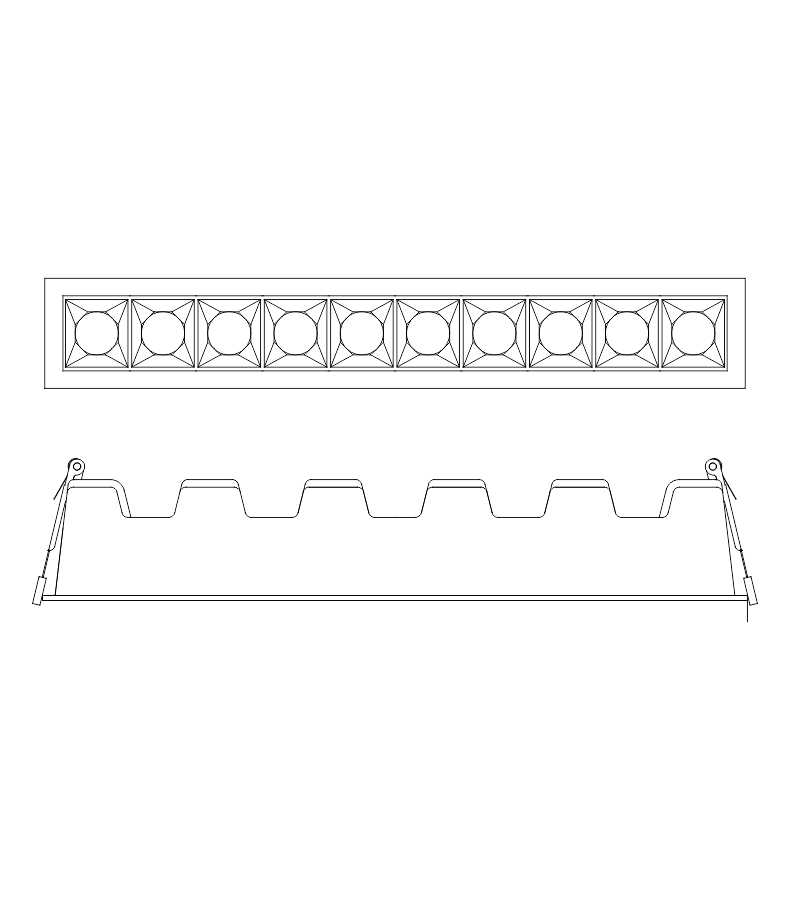

Product Image
Wattage
20W
Lumen
1830 lm - 1935 lm
Beam Angle
15°/ 24°/ 38°/ 60°/Wallwash
UGR
<19
IP rating
IP20
check icon
Ten-Module Configuration
Provides uniform illumination over extended ceiling spans.
check icon
Diamond Reflector Geometry
Ensures consistent light quality with defined edges.
check icon
Architectural Trim Design
Offers clean, structured ceiling alignment.
check icon
Comprehensive Dimming Compatibility
Supports Non-Dimmable, Analog, Triac, DALI, DALI Tunable, and RF Tunable dimming systems.

Product Details

Model Model Name Model No Size Wattage Lumens CCT CRI Beam Angle IP Rating Accessories Dimming Option Specssheet 2D 3D Installation Manual
product-img Aeonic Brick 1x10-Trim 1272 W280 x H48 mm 20 1935 4000 92 15 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x10-Trim 1272 W280 x H48 mm 20 1935 4000 92 24 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x10-Trim 1272 W280 x H48 mm 20 1935 4000 92 38 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x10-Trim 1272 W280 x H48 mm 20 1935 4000 92 60 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x10-Trim 1272 W280 x H48 mm 20 1935 4000 92 Wallwash IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x10-Trim 1272 W280 x H48 mm 20 1875 3000 92 15 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x10-Trim 1272 W280 x H48 mm 20 1875 3000 92 24 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x10-Trim 1272 W280 x H48 mm 20 1875 3000 92 38 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x10-Trim 1272 W280 x H48 mm 20 1875 3000 92 60 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x10-Trim 1272 W280 x H48 mm 20 1875 3000 92 Wallwash IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x10-Trim 1272 W280 x H48 mm 20 1830 2700 92 15 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x10-Trim 1272 W280 x H48 mm 20 1830 2700 92 24 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x10-Trim 1272 W280 x H48 mm 20 1830 2700 92 38 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x10-Trim 1272 W280 x H48 mm 20 1830 2700 92 60 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x10-Trim 1272 W280 x H48 mm 20 1830 2700 92 Wallwash IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
