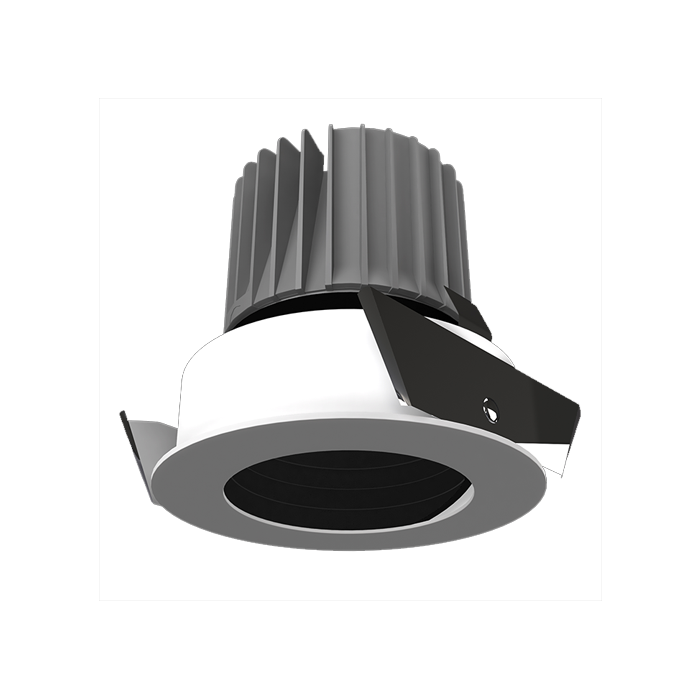

Allura aperture fix S/M/L

Interior Spaces

Allura Aperture Fix is designed to deliver pure comfort and seamless illumination in hospitality and residential settings. Its fixed beam creates uniform ambient lighting that enhances architectural spaces without glare or distraction. With warm CCT options and refined optics, it sets the tone for a relaxing atmosphere in guestrooms, corridors, and lounges — ensuring performance that feels as good as it looks.

Specifications

Product Image
Wattage
7W/15W/10W
Lumen
580lm - 1325lm
Beam angle
10°/ 15° /24° /38°/ 60°
UGR
<19
IP Rating
IP44
check icon
Low-Glare Optics
Carefully designed reflector ensures soft visual comfort
check icon
Consistent Beam Quality
Perfect uniform light for ambient applications
check icon
Warm Ambience
Available in 2700K / 3000K color temperatures
check icon
Architectural Fit
Sleek form integrates seamlessly with ceiling designs

Product Details

Model Model Name Model No Size Wattage Lumens CCT CRI Beam Angle IP Rating Accessories Dimming Option Specssheet 2D 3D Installation Manual
product-img Allura Aperture Fix 1003 Dia 85 x H 106mm 15 1325 4000 95 60 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Aperture Fix 1003 Dia 85 x H 106mm 15 1325 4000 95 38 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Aperture Fix 1003 Dia 85 x H 106mm 15 1325 4000 95 24 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Aperture Fix 1003 Dia 85 x H 106mm 15 1325 4000 95 15 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Aperture Fix 1003 Dia 85 x H 106mm 15 1325 4000 95 10 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Aperture Fix 1003 Dia 85 x H 106mm 15 1286 3000 95 60 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Aperture Fix 1003 Dia 85 x H 106mm 15 1286 3000 95 38 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Aperture Fix 1003 Dia 85 x H 106mm 15 1286 3000 95 24 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Aperture Fix 1003 Dia 85 x H 106mm 15 1286 3000 95 15 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Aperture Fix 1003 Dia 85 x H 106mm 15 1286 3000 95 10 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Aperture Fix 1003 Dia 85 x H 106mm 15 1255 2700 95 60 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Aperture Fix 1003 Dia 85 x H 106mm 15 1255 2700 95 38 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Aperture Fix 1003 Dia 85 x H 106mm 15 1255 2700 95 24 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Aperture Fix 1003 Dia 85 x H 106mm 15 1255 2700 95 15 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Aperture Fix 1003 Dia 85 x H 106mm 15 1255 2700 95 10 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Aperture Fix 1002 Dia 85 x H 90mm 10 880 4000 95 60 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Aperture Fix 1002 Dia 85 x H 90mm 10 880 4000 95 38 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Aperture Fix 1002 Dia 85 x H 90mm 10 880 4000 95 24 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Aperture Fix 1002 Dia 85 x H 90mm 10 880 4000 95 15 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Aperture Fix 1002 Dia 85 x H 90mm 10 880 4000 95 10 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Aperture Fix 1002 Dia 85 x H 90mm 10 855 3000 95 60 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Aperture Fix 1002 Dia 85 x H 90mm 10 855 3000 95 38 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Aperture Fix 1002 Dia 85 x H 90mm 10 855 3000 95 24 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Aperture Fix 1002 Dia 85 x H 90mm 10 855 3000 95 15 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Aperture Fix 1002 Dia 85 x H 90mm 10 855 3000 95 10 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Aperture Fix 1002 Dia 85 x H 90mm 10 835 2700 95 60 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Aperture Fix 1002 Dia 85 x H 90mm 10 835 2700 95 38 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Aperture Fix 1002 Dia 85 x H 90mm 10 835 2700 95 24 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Aperture Fix 1002 Dia 85 x H 90mm 10 835 2700 95 15 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Aperture Fix 1002 Dia 85 x H 90mm 10 835 2700 95 10 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Aperture Fix 1001 Dia 70 x H 82mm 10 880 4000 95 38 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Aperture Fix 1001 Dia 70 x H 82mm 10 880 4000 95 24 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Aperture Fix 1001 Dia 70 x H 82mm 10 880 4000 95 15 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Aperture Fix 1001 Dia 70 x H 82mm 10 855 3000 95 38 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Aperture Fix 1001 Dia 70 x H 82mm 10 855 3000 95 24 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Aperture Fix 1001 Dia 70 x H 82mm 10 855 3000 95 15 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Aperture Fix 1001 Dia 70 x H 82mm 10 835 2700 95 38 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Aperture Fix 1001 Dia 70 x H 82mm 10 835 2700 95 24 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Aperture Fix 1001 Dia 70 x H 82mm 10 835 2700 95 15 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Aperture Fix 1001 Dia 70 x H 82mm 7 610 4000 95 38 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Aperture Fix 1001 Dia 70 x H 82mm 7 610 4000 95 24 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Aperture Fix 1001 Dia 70 x H 82mm 7 610 4000 95 15 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Aperture Fix 1001 Dia 70 x H 82mm 7 595 3000 95 38 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Aperture Fix 1001 Dia 70 x H 82mm 7 595 3000 95 24 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Aperture Fix 1001 Dia 70 x H 82mm 7 595 3000 95 15 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Aperture Fix 1001 Dia 70 x H 82mm 7 580 2700 95 38 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Aperture Fix 1001 Dia 70 x H 82mm 7 580 2700 95 24 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
