Circular Aesthetic
Adds a distinct, modern circular element to the linear track design.

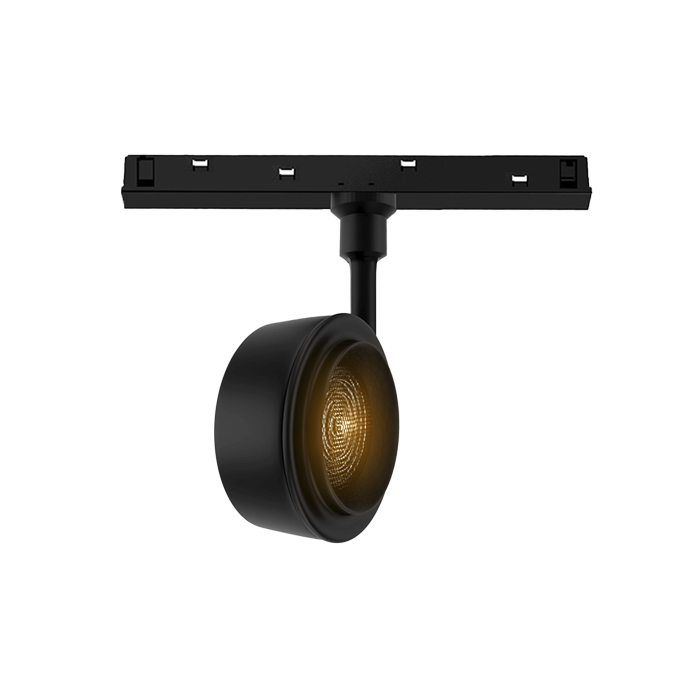

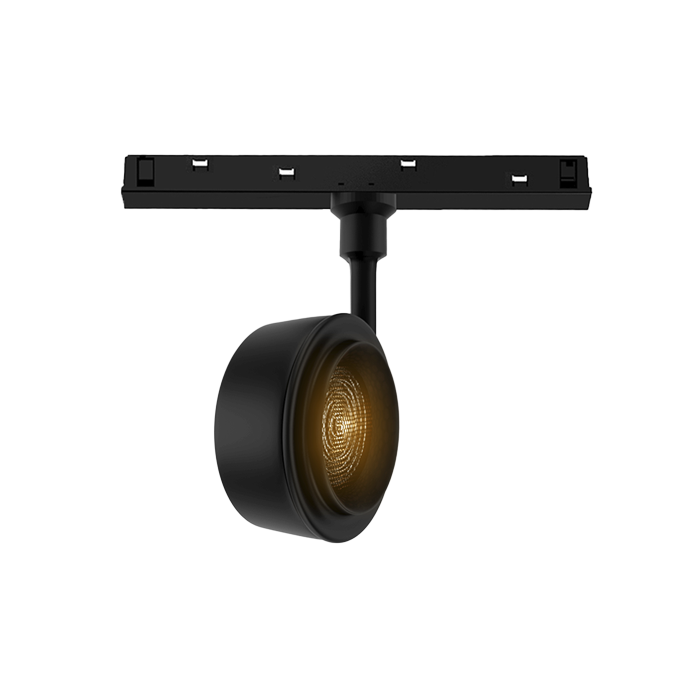

Joule Disc is a compact, circular downlight module that provides wide-angle, general illumination. It is designed to be easily repositioned, offering a versatile tool for general-area lighting or for achieving an aesthetic featuring repeating circular light sources within the linear track.
| Model | Model Name | Model No | Size | Wattage | Lumens | CCT | CRI | Beam Angle | IP Rating | Accessories | Dimming Option | Specssheet | 2D | 3D | Installation Manual |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Joule Standard Disc | 2249 | Diameter 74mm x Height 34mm | 10 | 875 | 4000 | 92 | 38 | IP20 | Honeycomb | Non Dim/Analog Dim/DALI Dim/Dali Tunable | Download | Download | Download | Download |
|
|
Joule Standard Disc | 2249 | Diameter 74mm x Height 34mm | 10 | 875 | 4000 | 92 | 24 | IP20 | Honeycomb | Non Dim/Analog Dim/DALI Dim/Dali Tunable | Download | Download | Download | Download |
|
|
Joule Standard Disc | 2249 | Diameter 74mm x Height 34mm | 10 | 875 | 4000 | 92 | 15 | IP20 | Honeycomb | Non Dim/Analog Dim/DALI Dim/Dali Tunable | Download | Download | Download | Download |
|
|
Joule Standard Disc | 2249 | Diameter 74mm x Height 34mm | 10 | 850 | 3000 | 92 | 38 | IP20 | Honeycomb | Non Dim/Analog Dim/DALI Dim/Dali Tunable | Download | Download | Download | Download |
|
|
Joule Standard Disc | 2249 | Diameter 74mm x Height 34mm | 10 | 850 | 3000 | 92 | 24 | IP20 | Honeycomb | Non Dim/Analog Dim/DALI Dim/Dali Tunable | Download | Download | Download | Download |
|
|
Joule Standard Disc | 2249 | Diameter 74mm x Height 34mm | 10 | 850 | 3000 | 92 | 15 | IP20 | Honeycomb | Non Dim/Analog Dim/DALI Dim/Dali Tunable | Download | Download | Download | Download |
|
|
Joule Standard Disc | 2249 | Diameter 74mm x Height 34mm | 10 | 830 | 2700 | 92 | 38 | IP20 | Honeycomb | Non Dim/Analog Dim/DALI Dim/Dali Tunable | Download | Download | Download | Download |
|
|
Joule Standard Disc | 2249 | Diameter 74mm x Height 34mm | 10 | 830 | 2700 | 92 | 24 | IP20 | Honeycomb | Non Dim/Analog Dim/DALI Dim/Dali Tunable | Download | Download | Download | Download |
|
|
Joule Standard Disc | 2249 | Diameter 74mm x Height 34mm | 10 | 830 | 2700 | 92 | 15 | IP20 | Honeycomb | Non Dim/Analog Dim/DALI Dim/Dali Tunable | Download | Download | Download | Download |
|
|
Joule Standard Disc | 2250 | Diameter 103mm x Height 40mm | 18 | 1575 | 4000 | 92 | 38 | IP20 | Honeycomb | Non Dim/Analog Dim/DALI Dim/Dali Tunable | Download | Download | Download | Download |
|
|
Joule Standard Disc | 2250 | Diameter 103mm x Height 40mm | 18 | 1575 | 4000 | 92 | 24 | IP20 | Honeycomb | Non Dim/Analog Dim/DALI Dim/Dali Tunable | Download | Download | Download | Download |
|
|
Joule Standard Disc | 2250 | Diameter 103mm x Height 40mm | 18 | 1575 | 4000 | 92 | 15 | IP20 | Honeycomb | Non Dim/Analog Dim/DALI Dim/Dali Tunable | Download | Download | Download | Download |
|
|
Joule Standard Disc | 2250 | Diameter 103mm x Height 40mm | 18 | 1530 | 3000 | 92 | 38 | IP20 | Honeycomb | Non Dim/Analog Dim/DALI Dim/Dali Tunable | Download | Download | Download | Download |
|
|
Joule Standard Disc | 2250 | Diameter 103mm x Height 40mm | 18 | 1530 | 3000 | 92 | 24 | IP20 | Honeycomb | Non Dim/Analog Dim/DALI Dim/Dali Tunable | Download | Download | Download | Download |
|
|
Joule Standard Disc | 2250 | Diameter 103mm x Height 40mm | 18 | 1530 | 3000 | 92 | 15 | IP20 | Honeycomb | Non Dim/Analog Dim/DALI Dim/Dali Tunable | Download | Download | Download | Download |
|
|
Joule Standard Disc | 2250 | Diameter 103mm x Height 40mm | 18 | 1494 | 2700 | 92 | 38 | IP20 | Honeycomb | Non Dim/Analog Dim/DALI Dim/Dali Tunable | Download | Download | Download | Download |
|
|
Joule Standard Disc | 2250 | Diameter 103mm x Height 40mm | 18 | 1494 | 2700 | 92 | 24 | IP20 | Honeycomb | Non Dim/Analog Dim/DALI Dim/Dali Tunable | Download | Download | Download | Download |
|
|
Joule Standard Disc | 2250 | Diameter 103mm x Height 40mm | 18 | 1494 | 2700 | 92 | 15 | IP20 | Honeycomb | Non Dim/Analog Dim/DALI Dim/Dali Tunable | Download | Download | Download | Download |
