Outdoor-Ready Design
Engineered with IP65-rated protection for reliable performance against dust, moisture, and environmental exposure

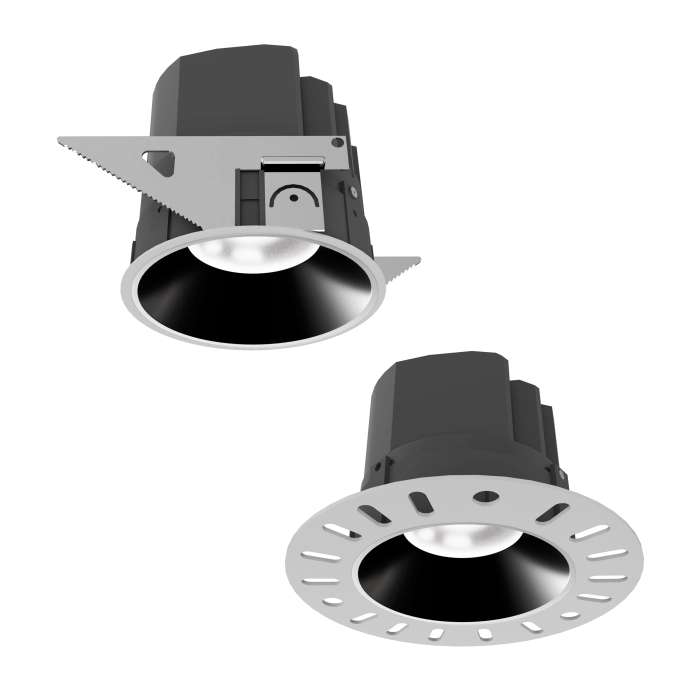

The Opus Exterior Series extends the signature Opus design philosophy to outdoor and semi-outdoor spaces, combining precision engineering with weather-resistant performance. Built for durability without compromising aesthetics, it delivers uniform, high-quality illumination with a refined architectural presence. The series offers both trim and trimless options for seamless integration in exterior ceilings, canopies, and covered walkways. Featuring a high CRI of 95, advanced optics, and IP65 protection, Opus Exterior ensures consistent light quality and reliability even in demanding environments.
| Model | Model Name | Model No | Size | Wattage | Lumens | CCT | CRI | Beam Angle | IP Rating | Accessories | Dimming Option | Specssheet | 2D | 3D | Installation Manual |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Opus Exterior Trimless | 1165 | Dia 51 x H 62mm | 10 | 885 | 2700 | 95 | 15 | IP65 | Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable | - | Download | Download | Download |
|
|
Opus Exterior Trimless | 1165 | Dia 51 x H 62mm | 10 | 885 | 2700 | 95 | 24 | IP65 | Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable | Download | Download | Download | Download |
|
|
Opus Exterior Trimless | 1165 | Dia 51 x H 62mm | 10 | 885 | 2700 | 95 | 38 | IP65 | Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable | Download | Download | Download | Download |
|
|
Opus Exterior Trimless | 1165 | Dia 51 x H 62mm | 10 | 910 | 3000 | 95 | 15 | IP65 | Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable | - | Download | Download | Download |
|
|
Opus Exterior Trimless | 1165 | Dia 51 x H 62mm | 10 | 910 | 3000 | 95 | 24 | IP65 | Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable | Download | Download | Download | Download |
|
|
Opus Exterior Trimless | 1165 | Dia 51 x H 62mm | 10 | 910 | 3000 | 95 | 38 | IP65 | Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable | Download | Download | Download | Download |
|
|
Opus Exterior Trimless | 1165 | Dia 51 x H 62mm | 10 | 935 | 4000 | 95 | 15 | IP65 | Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable | - | Download | Download | Download |
|
|
Opus Exterior Trimless | 1165 | Dia 51 x H 62mm | 10 | 935 | 4000 | 95 | 24 | IP65 | Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable | Download | Download | Download | Download |
|
|
Opus Exterior Trimless | 1165 | Dia 51 x H 62mm | 10 | 935 | 4000 | 95 | 38 | IP65 | Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable | Download | Download | Download | Download |
|
|
Opus Exterior Trimless | 1168 | Dia 68 x H 74mm | 15 | 1330 | 2700 | 95 | 15 | IP65 | Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable | Download | Download | Download | Download |
|
|
Opus Exterior Trimless | 1168 | Dia 68 x H 74mm | 15 | 1330 | 2700 | 95 | 24 | IP65 | Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable | Download | Download | Download | Download |
|
|
Opus Exterior Trimless | 1168 | Dia 68 x H 74mm | 15 | 1330 | 2700 | 95 | 38 | IP65 | Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable | Download | Download | Download | Download |
|
|
Opus Exterior Trimless | 1168 | Dia 68 x H 74mm | 15 | 1365 | 3000 | 95 | 15 | IP65 | Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable | Download | Download | Download | Download |
|
|
Opus Exterior Trimless | 1168 | Dia 68 x H 74mm | 15 | 1365 | 3000 | 95 | 24 | IP65 | Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable | Download | Download | Download | Download |
|
|
Opus Exterior Trimless | 1168 | Dia 68 x H 74mm | 15 | 1365 | 3000 | 95 | 38 | IP65 | Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable | Download | Download | Download | Download |
|
|
Opus Exterior Trimless | 1168 | Dia 68 x H 74mm | 15 | 1405 | 4000 | 95 | 15 | IP65 | Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable | Download | Download | Download | Download |
|
|
Opus Exterior Trimless | 1168 | Dia 68 x H 74mm | 15 | 1405 | 4000 | 95 | 24 | IP65 | Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable | Download | Download | Download | Download |
|
|
Opus Exterior Trimless | 1168 | Dia 68 x H 74mm | 15 | 1405 | 4000 | 95 | 38 | IP65 | Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable | Download | Download | Download | Download |
|
|
Opus Exterior Trimless | 1171 | Dia 88 x H 93mm | 25 | 2090 | 2700 | 95 | 15 | IP65 | Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable | Download | Download | Download | Download |
|
|
Opus Exterior Trimless | 1171 | Dia 88 x H 93mm | 25 | 2090 | 2700 | 95 | 24 | IP65 | Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable | Download | Download | Download | Download |
|
|
Opus Exterior Trimless | 1171 | Dia 88 x H 93mm | 25 | 2090 | 2700 | 95 | 38 | IP65 | Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable | Download | Download | Download | Download |
|
|
Opus Exterior Trimless | 1171 | Dia 88 x H 93mm | 25 | 2145 | 3000 | 95 | 15 | IP65 | Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable | Download | Download | Download | Download |
|
|
Opus Exterior Trimless | 1171 | Dia 88 x H 93mm | 25 | 2145 | 3000 | 95 | 24 | IP65 | Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable | Download | Download | Download | Download |
|
|
Opus Exterior Trimless | 1171 | Dia 88 x H 93mm | 25 | 2145 | 3000 | 95 | 38 | IP65 | Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable | Download | Download | Download | Download |
|
|
Opus Exterior Trimless | 1171 | Dia 88 x H 93mm | 25 | 2205 | 4000 | 95 | 15 | IP65 | Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable | Download | Download | Download | Download |
|
|
Opus Exterior Trimless | 1171 | Dia 88 x H 93mm | 25 | 2205 | 4000 | 95 | 24 | IP65 | Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable | Download | Download | Download | Download |
|
|
Opus Exterior Trimless | 1171 | Dia 88 x H 93mm | 25 | 2205 | 4000 | 95 | 38 | IP65 | Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable | Download | Download | Download | Download |
|
|
Opus Exterior Trimless | 1174 | Dia 105 x H 107mm | 35 | 2625 | 2700 | 95 | 15 | IP65 | Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable | Download | Download | Download | Download |
|
|
Opus Exterior Trimless | 1174 | Dia 105 x H 107mm | 35 | 2625 | 2700 | 95 | 24 | IP65 | Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable | Download | Download | Download | Download |
|
|
Opus Exterior Trimless | 1174 | Dia 105 x H 107mm | 35 | 2625 | 2700 | 95 | 38 | IP65 | Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable | Download | Download | Download | Download |
|
|
Opus Exterior Trimless | 1174 | Dia 105 x H 107mm | 35 | 2695 | 3000 | 95 | 15 | IP65 | Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable | Download | Download | Download | Download |
|
|
Opus Exterior Trimless | 1174 | Dia 105 x H 107mm | 35 | 2695 | 3000 | 95 | 24 | IP65 | Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable | Download | Download | Download | Download |
|
|
Opus Exterior Trimless | 1174 | Dia 105 x H 107mm | 35 | 2695 | 3000 | 95 | 38 | IP65 | Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable | Download | Download | Download | Download |
|
|
Opus Exterior Trimless | 1174 | Dia 105 x H 107mm | 35 | 2770 | 4000 | 95 | 15 | IP65 | Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable | Download | Download | Download | Download |
|
|
Opus Exterior Trimless | 1174 | Dia 105 x H 107mm | 35 | 2770 | 4000 | 95 | 24 | IP65 | Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable | Download | Download | Download | Download |
|
|
Opus Exterior Trimless | 1174 | Dia 105 x H 107mm | 35 | 2770 | 4000 | 95 | 38 | IP65 | Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable | Download | Download | Download | Download |
|
|
Opus Exterior | 1164 | Dia 70 x H 62mm | 10 | 885 | 2700 | 95 | 15 | IP65 | Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable | - | Download | Download | Download |
|
|
Opus Exterior | 1164 | Dia 70 x H 62mm | 10 | 885 | 2700 | 95 | 24 | IP65 | Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable | Download | Download | Download | Download |
|
|
Opus Exterior | 1164 | Dia 70 x H 62mm | 10 | 885 | 2700 | 95 | 38 | IP65 | Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable | Download | Download | Download | Download |
|
|
Opus Exterior | 1164 | Dia 70 x H 62mm | 10 | 910 | 3000 | 95 | 15 | IP65 | Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable | - | Download | Download | Download |
|
|
Opus Exterior | 1164 | Dia 70 x H 62mm | 10 | 910 | 3000 | 95 | 24 | IP65 | Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable | Download | Download | Download | Download |
|
|
Opus Exterior | 1164 | Dia 70 x H 62mm | 10 | 910 | 3000 | 95 | 38 | IP65 | Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable | Download | Download | Download | Download |
|
|
Opus Exterior | 1164 | Dia 70 x H 62mm | 10 | 935 | 4000 | 95 | 15 | IP65 | Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable | - | Download | Download | Download |
|
|
Opus Exterior | 1164 | Dia 70 x H 62mm | 10 | 935 | 4000 | 95 | 24 | IP65 | Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable | Download | Download | Download | Download |
|
|
Opus Exterior | 1164 | Dia 70 x H 62mm | 10 | 935 | 4000 | 95 | 38 | IP65 | Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable | Download | Download | Download | Download |
|
|
Opus Exterior | 1167 | Dia 87 x H 74mm | 15 | 1330 | 2700 | 95 | 15 | IP65 | Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable | Download | Download | Download | Download |
|
|
Opus Exterior | 1167 | Dia 87 x H 74mm | 15 | 1330 | 2700 | 95 | 24 | IP65 | Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable | Download | Download | Download | Download |
|
|
Opus Exterior | 1167 | Dia 87 x H 74mm | 15 | 1330 | 2700 | 95 | 38 | IP65 | Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable | Download | Download | Download | Download |
|
|
Opus Exterior | 1167 | Dia 87 x H 74mm | 15 | 1365 | 3000 | 95 | 15 | IP65 | Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable | Download | Download | Download | Download |
|
|
Opus Exterior | 1167 | Dia 87 x H 74mm | 15 | 1365 | 3000 | 95 | 24 | IP65 | Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable | Download | Download | Download | Download |
|
|
Opus Exterior | 1167 | Dia 87 x H 74mm | 15 | 1365 | 3000 | 95 | 38 | IP65 | Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable | Download | Download | Download | Download |
|
|
Opus Exterior | 1167 | Dia 87 x H 74mm | 15 | 1405 | 4000 | 95 | 15 | IP65 | Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable | Download | Download | Download | Download |
|
|
Opus Exterior | 1167 | Dia 87 x H 74mm | 15 | 1405 | 4000 | 95 | 24 | IP65 | Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable | Download | Download | Download | Download |
|
|
Opus Exterior | 1167 | Dia 87 x H 74mm | 15 | 1405 | 4000 | 95 | 38 | IP65 | Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable | Download | Download | Download | Download |
|
|
Opus Exterior | 1170 | Dia 108 x H 93mm | 25 | 2090 | 2700 | 95 | 15 | IP65 | Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable | Download | Download | Download | Download |
|
|
Opus Exterior | 1170 | Dia 108 x H 93mm | 25 | 2090 | 2700 | 95 | 24 | IP65 | Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable | Download | Download | Download | Download |
|
|
Opus Exterior | 1170 | Dia 108 x H 93mm | 25 | 2090 | 2700 | 95 | 38 | IP65 | Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable | Download | Download | Download | Download |
|
|
Opus Exterior | 1170 | Dia 108 x H 93mm | 25 | 2145 | 3000 | 95 | 15 | IP65 | Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable | Download | Download | Download | Download |
|
|
Opus Exterior | 1170 | Dia 108 x H 93mm | 25 | 2145 | 3000 | 95 | 24 | IP65 | Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable | Download | Download | Download | Download |
|
|
Opus Exterior | 1170 | Dia 108 x H 93mm | 25 | 2145 | 3000 | 95 | 38 | IP65 | Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable | Download | Download | Download | Download |
|
|
Opus Exterior | 1170 | Dia 108 x H 93mm | 25 | 2205 | 4000 | 95 | 15 | IP65 | Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable | Download | Download | Download | Download |
|
|
Opus Exterior | 1170 | Dia 108 x H 93mm | 25 | 2205 | 4000 | 95 | 24 | IP65 | Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable | Download | Download | Download | Download |
|
|
Opus Exterior | 1170 | Dia 108 x H 93mm | 25 | 2205 | 4000 | 95 | 38 | IP65 | Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable | Download | Download | Download | Download |
|
|
Opus Exterior | 1173 | Dia 130 x H 107mm | 35 | 2625 | 2700 | 95 | 15 | IP65 | Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable | Download | Download | Download | Download |
|
|
Opus Exterior | 1173 | Dia 130 x H 107mm | 35 | 2625 | 2700 | 95 | 24 | IP65 | Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable | Download | Download | Download | Download |
|
|
Opus Exterior | 1173 | Dia 130 x H 107mm | 35 | 2625 | 2700 | 95 | 38 | IP65 | Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable | Download | Download | Download | Download |
|
|
Opus Exterior | 1173 | Dia 130 x H 107mm | 35 | 2695 | 3000 | 95 | 15 | IP65 | Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable | Download | Download | Download | Download |
|
|
Opus Exterior | 1173 | Dia 130 x H 107mm | 35 | 2695 | 3000 | 95 | 24 | IP65 | Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable | Download | Download | Download | Download |
|
|
Opus Exterior | 1173 | Dia 130 x H 107mm | 35 | 2695 | 3000 | 95 | 38 | IP65 | Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable | Download | Download | Download | Download |
|
|
Opus Exterior | 1173 | Dia 130 x H 107mm | 35 | 2770 | 4000 | 95 | 15 | IP65 | Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable | Download | Download | Download | Download |
|
|
Opus Exterior | 1173 | Dia 130 x H 107mm | 35 | 2770 | 4000 | 95 | 24 | IP65 | Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable | Download | Download | Download | Download |
|
|
Opus Exterior | 1173 | Dia 130 x H 107mm | 35 | 2770 | 4000 | 95 | 38 | IP65 | Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable | Download | Download | Download | Download |
