Uniform Vertical Illumination
Engineered for smooth, consistent wall lighting from top to bottom, eliminating hotspots and shadows.

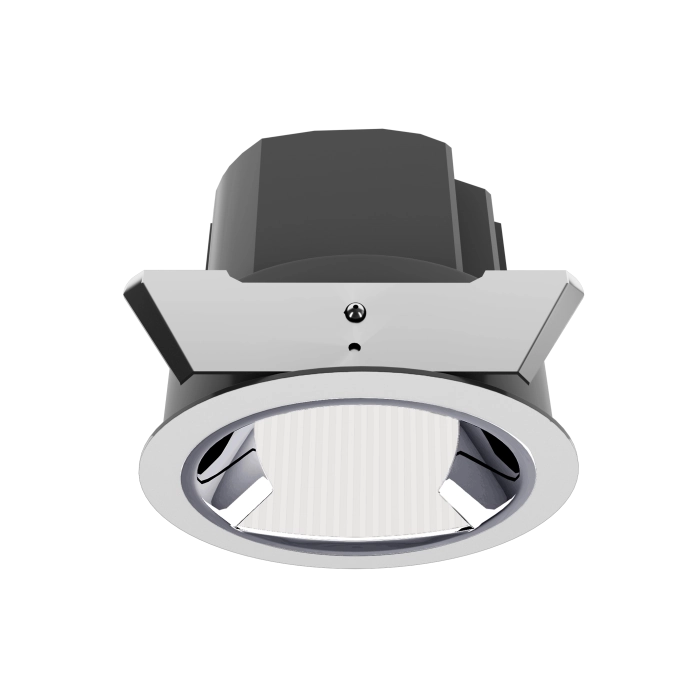

The Opus Wallwash Series is crafted to deliver refined, even vertical illumination that enhances architectural surfaces and interior details. Combining high-CRI LED performance with precise optical control, it creates soft gradients of light ideal for highlighting walls, artwork, or textured finishes. The deep reflector design ensures uniform brightness from ceiling to floor with minimal glare. Offered in a trim version for clean ceiling integration, Opus Wallwash brings both visual depth and balanced illumination to hospitality, retail, and residential interiors.
| Model | Model Name | Model No | Size | Wattage | Lumens | CCT | CRI | Beam Angle | IP Rating | Accessories | Dimming Option | Specssheet | 2D | 3D | Installation Manual |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Opus Wallwash | 1176 | Dia 70 x H 62mm | 10 | 715 | 2700 | 95 | Wallwash | IP20 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable | Download | Download | Download | Download |
|
|
Opus Wallwash | 1176 | Dia 70 x H 62mm | 10 | 735 | 3000 | 95 | Wallwash | IP20 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable | Download | Download | Download | Download |
|
|
Opus Wallwash | 1176 | Dia 70 x H 62mm | 10 | 755 | 4000 | 95 | Wallwash | IP20 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable | Download | Download | Download | Download |
|
|
Opus Wallwash | 1179 | Dia 87 x H 74mm | 15 | 1065 | 2700 | 95 | Wallwash | IP20 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable | Download | Download | Download | Download |
|
|
Opus Wallwash | 1179 | Dia 87 x H 74mm | 15 | 1095 | 3000 | 95 | Wallwash | IP20 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable | Download | Download | Download | Download |
|
|
Opus Wallwash | 1179 | Dia 87 x H 74mm | 15 | 1125 | 4000 | 95 | Wallwash | IP20 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable | Download | Download | Download | Download |
|
|
Opus Wallwash | 1182 | Dia 108 x H 93mm | 25 | 1695 | 2700 | 95 | Wallwash | IP20 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable | Download | Download | Download | Download |
|
|
Opus Wallwash | 1182 | Dia 108 x H 93mm | 25 | 1735 | 3000 | 95 | Wallwash | IP20 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable | Download | Download | Download | Download |
|
|
Opus Wallwash | 1182 | Dia 108 x H 93mm | 25 | 1790 | 4000 | 95 | Wallwash | IP20 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable | Download | Download | Download | Download |
|
|
Opus Wallwash | 1185 | Dia 130 x H 107mm | 35 | 2495 | 2700 | 95 | Wallwash | IP20 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable | Download | Download | Download | Download |
|
|
Opus Wallwash | 1185 | Dia 130 x H 107mm | 35 | 2560 | 3000 | 95 | Wallwash | IP20 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable | Download | Download | Download | Download |
|
|
Opus Wallwash | 1185 | Dia 130 x H 107mm | 35 | 2635 | 4000 | 95 | Wallwash | IP20 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable | Download | Download | Download | Download |
