Retractable Pullout Mechanism
Features a unique design that allows the light engine to be pulled out of the ceiling for maximum aiming flexibility, covering a wider range than fixed-angle adjustable lights.

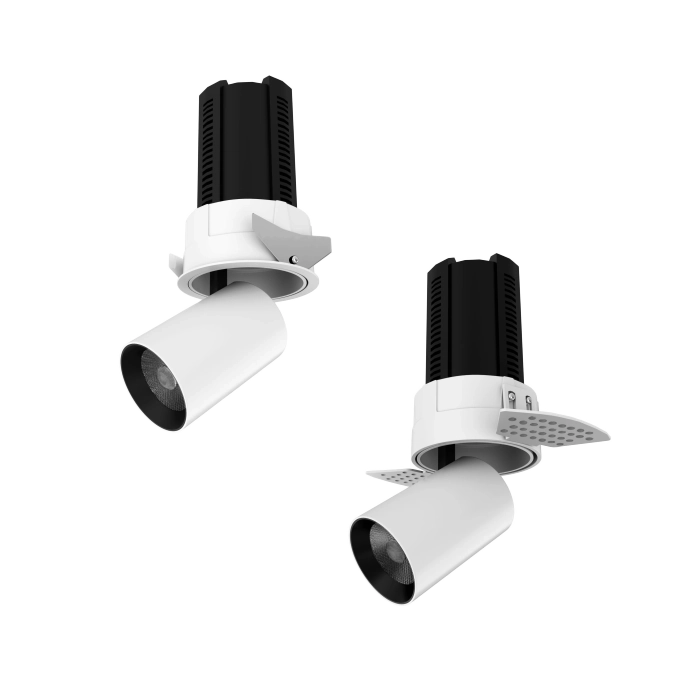

Tenace Pullout Round Models (Trim/Trimless) are the most versatile adjustable downlights in the series, designed for precision accenting with maximum flexibility. These fixtures feature a sophisticated mechanism that allows the light engine to be pulled down from the housing and fully articulated with 360° rotation and high-angle tilt. This unique capability enables the light to be projected across a wider range than standard recessed fixtures. Despite its dynamic movement, the fixture utilizes a high-output Array LED (Typ CRI 95) and maintains the signature Tenace anti-glare excellence (UGR <19) when fully retracted.
| Model | Model Name | Model No | Size | Wattage | Lumens | CCT | CRI | Beam Angle | IP Rating | Accessories | Dimming Option | Specssheet | 2D | 3D | Installation Manual |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

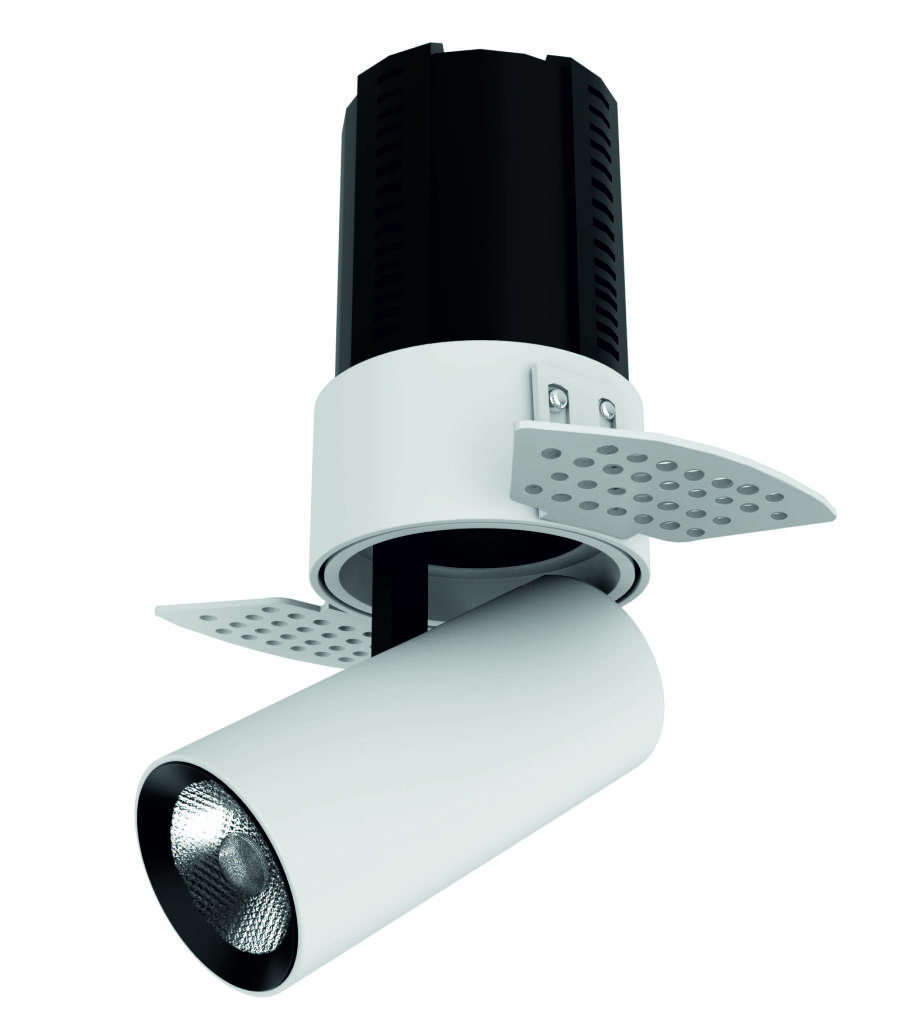

Tenace Pullout - Round Trimless | 1225 | Dia 50 x H 87 mm | 7 | 640 | 4000 | 95 | 60 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Round Trimless | 1225 | Dia 50 x H 87 mm | 7 | 640 | 4000 | 95 | 38 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Round Trimless | 1225 | Dia 50 x H 87 mm | 7 | 640 | 4000 | 95 | 24 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Round Trimless | 1225 | Dia 50 x H 87 mm | 7 | 640 | 4000 | 95 | 15 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Round Trimless | 1225 | Dia 50 x H 87 mm | 7 | 640 | 4000 | 95 | 10 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Round Trimless | 1225 | Dia 50 x H 87 mm | 7 | 620 | 3000 | 95 | 60 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Round Trimless | 1225 | Dia 50 x H 87 mm | 7 | 620 | 3000 | 95 | 38 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Round Trimless | 1225 | Dia 50 x H 87 mm | 7 | 620 | 3000 | 95 | 24 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Round Trimless | 1225 | Dia 50 x H 87 mm | 7 | 620 | 3000 | 95 | 15 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Round Trimless | 1225 | Dia 50 x H 87 mm | 7 | 620 | 3000 | 95 | 10 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Round Trimless | 1225 | Dia 50 x H 87 mm | 7 | 605 | 2700 | 95 | 38 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Round Trimless | 1225 | Dia 50 x H 87 mm | 7 | 605 | 2700 | 95 | 60 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Round Trimless | 1225 | Dia 50 x H 87 mm | 7 | 605 | 2700 | 95 | 24 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Round Trimless | 1225 | Dia 50 x H 87 mm | 7 | 605 | 2700 | 95 | 15 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Round Trimless | 1225 | Dia 50 x H 87 mm | 7 | 605 | 2700 | 95 | 10 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Round Trimless | 1227 | Dia 73 x H 100 mm | 12 | 1085 | 4000 | 95 | 60 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Round Trimless | 1227 | Dia 73 x H 100 mm | 12 | 1085 | 4000 | 95 | 38 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Round Trimless | 1227 | Dia 73 x H 100 mm | 12 | 1085 | 4000 | 95 | 24 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Round Trimless | 1227 | Dia 73 x H 100 mm | 12 | 1085 | 4000 | 95 | 15 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Round Trimless | 1227 | Dia 73 x H 100 mm | 12 | 1085 | 4000 | 95 | 10 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Round Trimless | 1227 | Dia 73 x H 100 mm | 12 | 1055 | 3000 | 95 | 60 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Round Trimless | 1227 | Dia 73 x H 100 mm | 12 | 1055 | 3000 | 95 | 38 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Round Trimless | 1227 | Dia 73 x H 100 mm | 12 | 1055 | 3000 | 95 | 24 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Round Trimless | 1227 | Dia 73 x H 100 mm | 12 | 1055 | 3000 | 95 | 15 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Round Trimless | 1227 | Dia 73 x H 100 mm | 12 | 1055 | 3000 | 95 | 10 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Round Trimless | 1227 | Dia 73 x H 100 mm | 12 | 1030 | 2700 | 95 | 60 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Round Trimless | 1227 | Dia 73 x H 100 mm | 12 | 1030 | 2700 | 95 | 38 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Round Trimless | 1227 | Dia 73 x H 100 mm | 12 | 1030 | 2700 | 95 | 24 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Round Trimless | 1227 | Dia 73 x H 100 mm | 12 | 1030 | 2700 | 95 | 15 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Round Trimless | 1227 | Dia 73 x H 100 mm | 12 | 1030 | 2700 | 95 | 10 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|

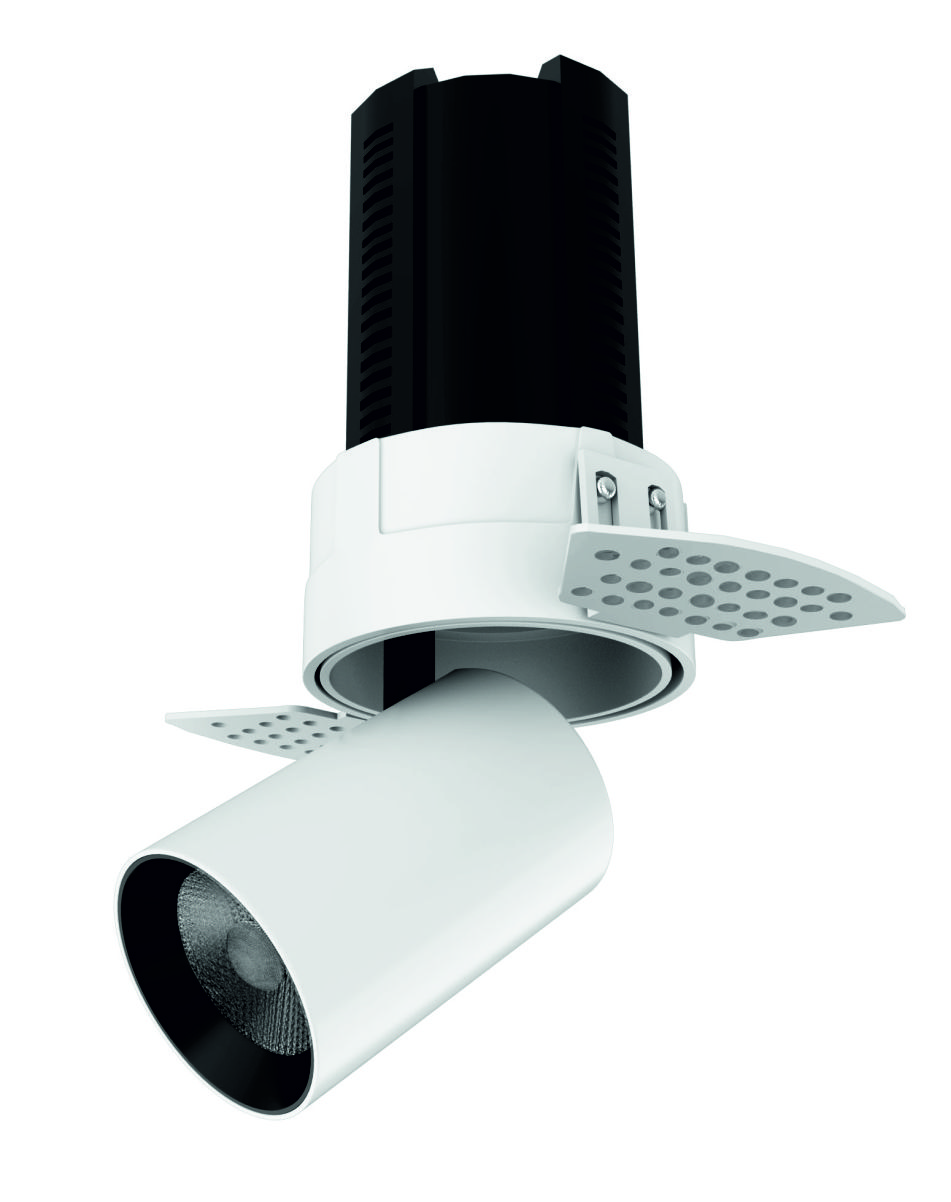

Tenace Pullout - Round Trimless | 1229 | Dia 91 x H 127 mm | 25 | 2250 | 4000 | 95 | 60 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Round Trimless | 1229 | Dia 91 x H 127 mm | 25 | 2250 | 4000 | 95 | 38 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Round Trimless | 1229 | Dia 91 x H 127 mm | 25 | 2250 | 4000 | 95 | 24 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Round Trimless | 1229 | Dia 91 x H 127 mm | 25 | 2250 | 4000 | 95 | 15 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Round Trimless | 1229 | Dia 91 x H 127 mm | 25 | 2250 | 4000 | 95 | 10 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Round Trimless | 1229 | Dia 91 x H 127 mm | 25 | 2180 | 3000 | 95 | 60 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Round Trimless | 1229 | Dia 91 x H 127 mm | 25 | 2180 | 3000 | 95 | 38 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Round Trimless | 1229 | Dia 91 x H 127 mm | 25 | 2180 | 3000 | 95 | 24 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Round Trimless | 1229 | Dia 91 x H 127 mm | 25 | 2180 | 3000 | 95 | 15 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Round Trimless | 1229 | Dia 91 x H 127 mm | 25 | 2180 | 3000 | 95 | 10 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Round Trimless | 1229 | Dia 91 x H 127 mm | 25 | 2125 | 2700 | 95 | 60 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Round Trimless | 1229 | Dia 91 x H 127 mm | 25 | 2125 | 2700 | 95 | 38 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Round Trimless | 1229 | Dia 91 x H 127 mm | 25 | 2125 | 2700 | 95 | 24 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Round Trimless | 1229 | Dia 91 x H 127 mm | 25 | 2125 | 2700 | 95 | 15 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Round Trimless | 1229 | Dia 91 x H 127 mm | 25 | 2125 | 2700 | 95 | 10 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|

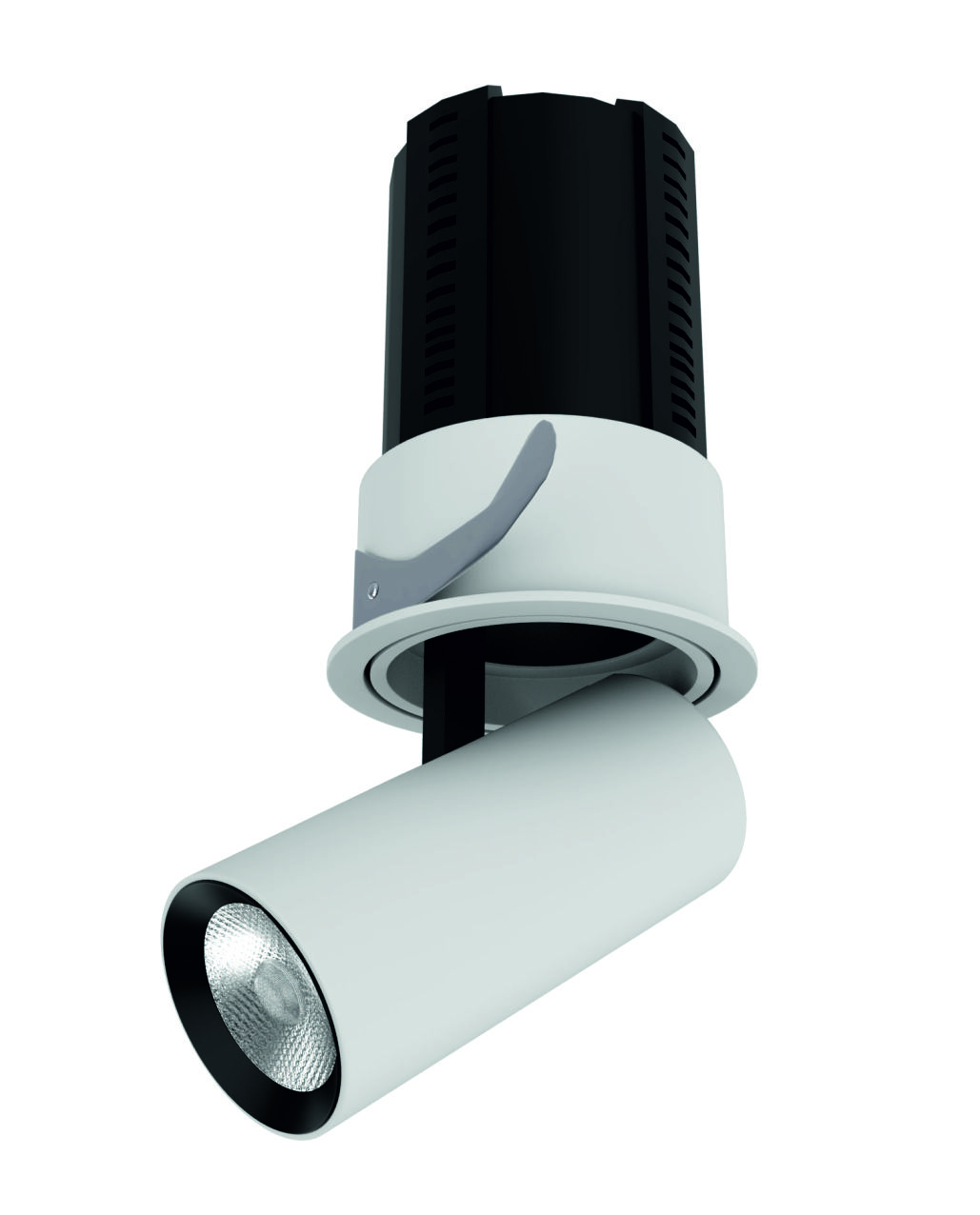

Tenace Pullout - Round | 1224 | Dia 60 x H 87 mm | 7 | 640 | 4000 | 95 | 60 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Round | 1224 | Dia 60 x H 87 mm | 7 | 640 | 4000 | 95 | 38 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Round | 1224 | Dia 60 x H 87 mm | 7 | 640 | 4000 | 95 | 15 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Round | 1224 | Dia 60 x H 87 mm | 7 | 640 | 4000 | 95 | 24 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Round | 1224 | Dia 60 x H 87 mm | 7 | 640 | 4000 | 95 | 10 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Round | 1224 | Dia 60 x H 87 mm | 7 | 620 | 3000 | 95 | 60 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Round | 1224 | Dia 60 x H 87 mm | 7 | 620 | 3000 | 95 | 38 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Round | 1224 | Dia 60 x H 87 mm | 7 | 620 | 3000 | 95 | 24 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Round | 1224 | Dia 60 x H 87 mm | 7 | 620 | 3000 | 95 | 15 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Round | 1224 | Dia 60 x H 87 mm | 7 | 620 | 3000 | 95 | 10 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Round | 1224 | Dia 60 x H 87 mm | 7 | 605 | 2700 | 95 | 60 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Round | 1224 | Dia 60 x H 87 mm | 7 | 605 | 2700 | 95 | 38 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Round | 1224 | Dia 60 x H 87 mm | 7 | 605 | 2700 | 95 | 24 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Round | 1224 | Dia 60 x H 87 mm | 7 | 605 | 2700 | 95 | 15 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Round | 1224 | Dia 60 x H 87 mm | 7 | 605 | 2700 | 95 | 10 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Round | 1226 | Dia 85 x H 100 mm | 12 | 1085 | 4000 | 95 | 60 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Round | 1226 | Dia 85 x H 100 mm | 12 | 1085 | 4000 | 95 | 24 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Round | 1226 | Dia 85 x H 100 mm | 12 | 1085 | 4000 | 95 | 38 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Round | 1226 | Dia 85 x H 100 mm | 12 | 1085 | 4000 | 95 | 15 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Round | 1226 | Dia 85 x H 100 mm | 12 | 1085 | 4000 | 95 | 10 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Round | 1226 | Dia 85 x H 100 mm | 12 | 1055 | 3000 | 95 | 60 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Round | 1226 | Dia 85 x H 100 mm | 12 | 1055 | 3000 | 95 | 38 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Round | 1226 | Dia 85 x H 100 mm | 12 | 1055 | 3000 | 95 | 24 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Round | 1226 | Dia 85 x H 100 mm | 12 | 1055 | 3000 | 95 | 10 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Round | 1226 | Dia 85 x H 100 mm | 12 | 1055 | 3000 | 95 | 15 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Round | 1226 | Dia 85 x H 100 mm | 12 | 1030 | 2700 | 95 | 60 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Round | 1226 | Dia 85 x H 100 mm | 12 | 1030 | 2700 | 95 | 38 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Round | 1226 | Dia 85 x H 100 mm | 12 | 1030 | 2700 | 95 | 24 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Round | 1226 | Dia 85 x H 100 mm | 12 | 1030 | 2700 | 95 | 15 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Round | 1226 | Dia 85 x H 100 mm | 12 | 1030 | 2700 | 95 | 10 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|

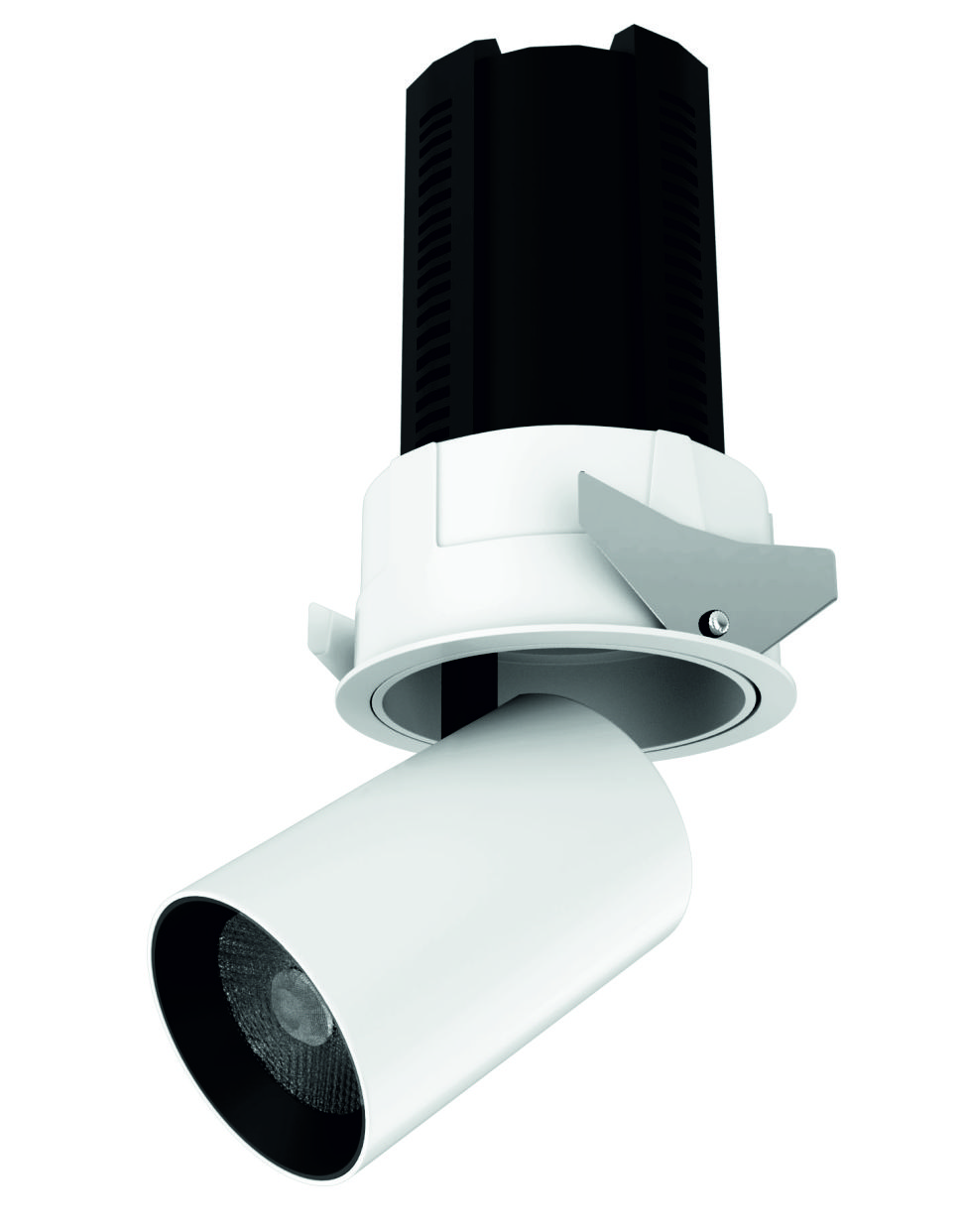

Tenace Pullout - Round | 1228 | Dia 110 x H 127 mm | 25 | 2250 | 4000 | 95 | 60 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Round | 1228 | Dia 110 x H 127 mm | 25 | 2250 | 4000 | 95 | 38 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Round | 1228 | Dia 110 x H 127 mm | 25 | 2250 | 4000 | 95 | 24 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Round | 1228 | Dia 110 x H 127 mm | 25 | 2250 | 4000 | 95 | 15 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Round | 1228 | Dia 110 x H 127 mm | 25 | 2250 | 4000 | 95 | 10 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Round | 1228 | Dia 110 x H 127 mm | 25 | 2180 | 3000 | 95 | 60 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Round | 1228 | Dia 110 x H 127 mm | 25 | 2180 | 3000 | 95 | 38 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Round | 1228 | Dia 110 x H 127 mm | 25 | 2180 | 3000 | 95 | 24 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Round | 1228 | Dia 110 x H 127 mm | 25 | 2180 | 3000 | 95 | 15 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Round | 1228 | Dia 110 x H 127 mm | 25 | 2180 | 3000 | 95 | 10 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Round | 1228 | Dia 110 x H 127 mm | 25 | 2125 | 2700 | 95 | 60 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Round | 1228 | Dia 110 x H 127 mm | 25 | 2125 | 2700 | 95 | 38 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Round | 1228 | Dia 110 x H 127 mm | 25 | 2125 | 2700 | 95 | 24 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Round | 1228 | Dia 110 x H 127 mm | 25 | 2125 | 2700 | 95 | 15 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Round | 1228 | Dia 110 x H 127 mm | 25 | 2125 | 2700 | 95 | 10 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
