Protected Swivel Mechanism
Features a robust internal mechanism that enables 360° Rotation and high-angle Tilt while providing added protection to the light engine, making it durable for dynamic applications.

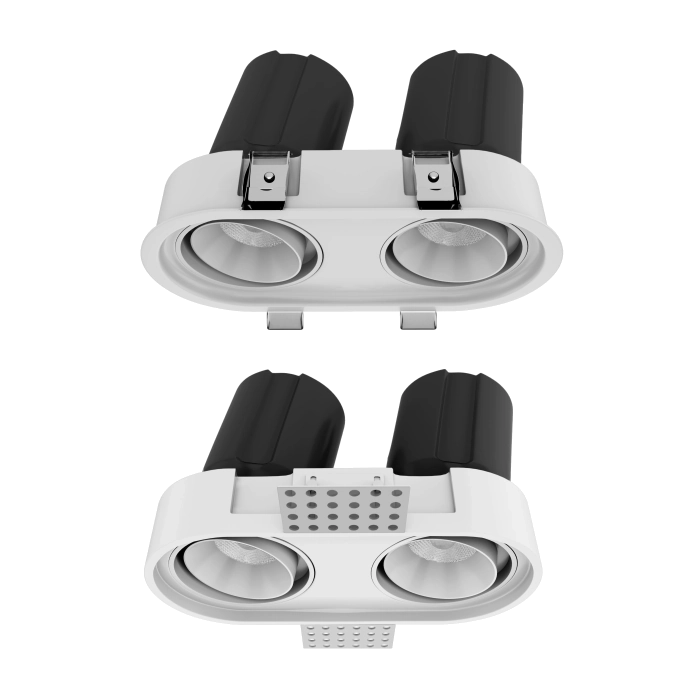

Tenace Swivel Capsule models (Trim/ Trimless) are premium directional downlights that marry a clean round aesthetic with robust, full-swivel flexibility. These M-Size fixtures house a powerful Array LED (Typ CRI 95) within a sophisticated, protected mechanism that allows for both 360° rotation and high-angle tilt. This capability enables precise aiming across any point in a room. The Swivel Capsule is an ideal, high-performance solution for contemporary spaces requiring dynamic, adjustable, and protected accent lighting with a unique form factor.
| Model | Model Name | Model No | Size | Wattage | Lumens | CCT | CRI | Beam Angle | IP Rating | Accessories | Dimming Option | Specssheet | 2D | 3D | Installation Manual |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

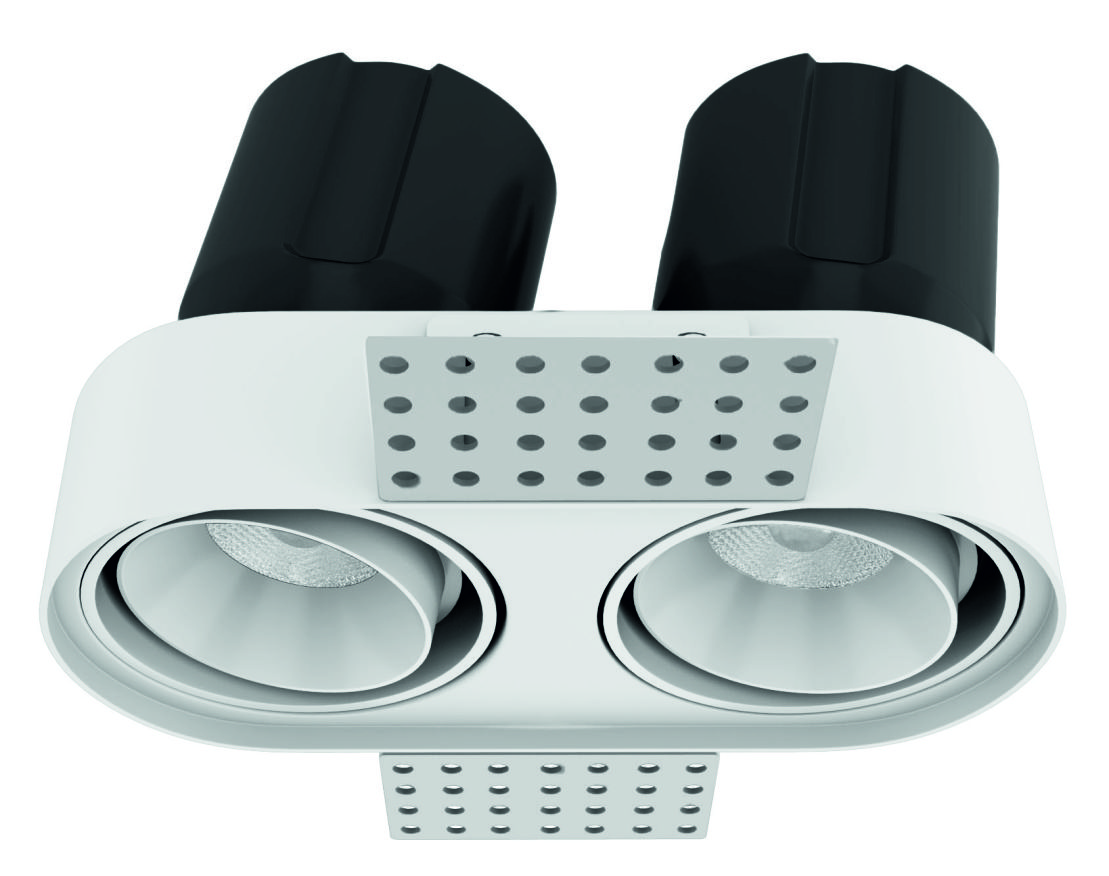

Tenace Swivel - Capsule Trimless | 1216 | 125L x 64W x 90H | 14 | 1240 | 4000 | 95 | 60 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule Trimless | 1216 | 125L x 64W x 90H | 14 | 1240 | 4000 | 95 | 38 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule Trimless | 1216 | 125L x 64W x 90H | 14 | 1240 | 4000 | 95 | 24 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule Trimless | 1216 | 125L x 64W x 90H | 14 | 1240 | 4000 | 95 | 15 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule Trimless | 1216 | 125L x 64W x 90H | 14 | 1240 | 4000 | 95 | 10 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule Trimless | 1216 | 125L x 64W x 90H | 14 | 1200 | 3000 | 95 | 60 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule Trimless | 1216 | 125L x 64W x 90H | 14 | 1200 | 3000 | 95 | 38 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule Trimless | 1216 | 125L x 64W x 90H | 14 | 1200 | 3000 | 95 | 24 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule Trimless | 1216 | 125L x 64W x 90H | 14 | 1200 | 3000 | 95 | 15 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule Trimless | 1216 | 125L x 64W x 90H | 14 | 1200 | 3000 | 95 | 10 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule Trimless | 1216 | 125L x 64W x 90H | 14 | 1170 | 2700 | 95 | 60 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule Trimless | 1216 | 125L x 64W x 90H | 14 | 1170 | 2700 | 95 | 24 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule Trimless | 1216 | 125L x 64W x 90H | 14 | 1170 | 2700 | 95 | 38 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule Trimless | 1216 | 125L x 64W x 90H | 14 | 1170 | 2700 | 95 | 15 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule Trimless | 1216 | 125L x 64W x 90H | 14 | 1170 | 2700 | 95 | 10 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule Trimless | 1219 | 177L x 88W x 123H | 40 | 3490 | 4000 | 95 | 60 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule Trimless | 1219 | 177L x 88W x 123H | 40 | 3490 | 4000 | 95 | 38 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule Trimless | 1219 | 177L x 88W x 123H | 40 | 3490 | 4000 | 95 | 24 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule Trimless | 1219 | 177L x 88W x 123H | 40 | 3490 | 4000 | 95 | 15 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule Trimless | 1219 | 177L x 88W x 123H | 40 | 3490 | 4000 | 95 | 10 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule Trimless | 1219 | 177L x 88W x 123H | 40 | 3380 | 3000 | 95 | 60 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule Trimless | 1219 | 177L x 88W x 123H | 40 | 3380 | 3000 | 95 | 38 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule Trimless | 1219 | 177L x 88W x 123H | 40 | 3380 | 3000 | 95 | 24 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule Trimless | 1219 | 177L x 88W x 123H | 40 | 3380 | 3000 | 95 | 15 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule Trimless | 1219 | 177L x 88W x 123H | 40 | 3380 | 3000 | 95 | 10 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule Trimless | 1219 | 177L x 88W x 123H | 40 | 3300 | 2700 | 95 | 60 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule Trimless | 1219 | 177L x 88W x 123H | 40 | 3300 | 2700 | 95 | 38 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule Trimless | 1219 | 177L x 88W x 123H | 40 | 3300 | 2700 | 95 | 24 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule Trimless | 1219 | 177L x 88W x 123H | 40 | 3300 | 2700 | 95 | 15 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule Trimless | 1219 | 177L x 88W x 123H | 40 | 3300 | 2700 | 95 | 10 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule Trimless | 1219 | 177L x 88W x 123H | 24 | 2100 | 4000 | 95 | 60 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule Trimless | 1219 | 177L x 88W x 123H | 24 | 2100 | 4000 | 95 | 38 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule Trimless | 1219 | 177L x 88W x 123H | 24 | 2100 | 4000 | 95 | 24 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule Trimless | 1219 | 177L x 88W x 123H | 24 | 2100 | 4000 | 95 | 15 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule Trimless | 1219 | 177L x 88W x 123H | 24 | 2100 | 4000 | 95 | 10 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule Trimless | 1219 | 177L x 88W x 123H | 24 | 2030 | 3000 | 95 | 60 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule Trimless | 1219 | 177L x 88W x 123H | 24 | 2030 | 3000 | 95 | 38 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule Trimless | 1219 | 177L x 88W x 123H | 24 | 2030 | 3000 | 95 | 24 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule Trimless | 1219 | 177L x 88W x 123H | 24 | 2030 | 3000 | 95 | 10 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule Trimless | 1219 | 177L x 88W x 123H | 24 | 2030 | 3000 | 95 | 15 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule Trimless | 1219 | 177L x 88W x 123H | 24 | 1980 | 2700 | 95 | 60 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule Trimless | 1219 | 177L x 88W x 123H | 24 | 1980 | 2700 | 95 | 38 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule Trimless | 1219 | 177L x 88W x 123H | 24 | 1980 | 2700 | 95 | 24 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule Trimless | 1219 | 177L x 88W x 123H | 24 | 1980 | 2700 | 95 | 15 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule Trimless | 1219 | 177L x 88W x 123H | 24 | 1980 | 2700 | 95 | 10 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|

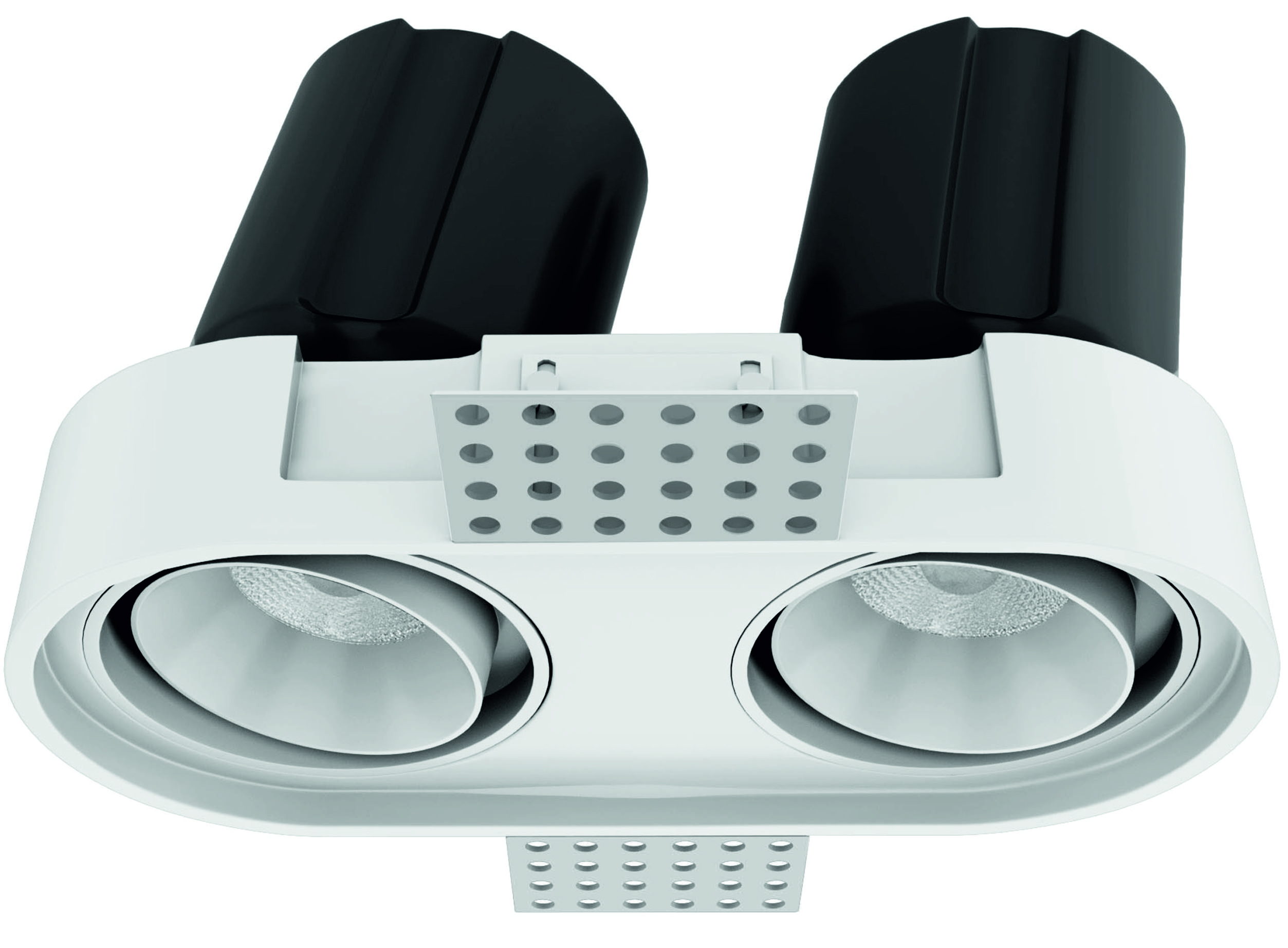

Tenace Swivel - Capsule Trimless | 1222 | 224L x 110W x 154H | 70 | 6130 | 4000 | 95 | 60 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule Trimless | 1222 | 224L x 110W x 154H | 70 | 6130 | 4000 | 95 | 38 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule Trimless | 1222 | 224L x 110W x 154H | 70 | 6130 | 4000 | 95 | 24 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule Trimless | 1222 | 224L x 110W x 154H | 70 | 6130 | 4000 | 95 | 15 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule Trimless | 1222 | 224L x 110W x 154H | 70 | 6130 | 4000 | 95 | 10 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule Trimless | 1222 | 224L x 110W x 154H | 70 | 5960 | 3000 | 95 | 60 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule Trimless | 1222 | 224L x 110W x 154H | 70 | 5960 | 3000 | 95 | 38 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule Trimless | 1222 | 224L x 110W x 154H | 70 | 5960 | 3000 | 95 | 24 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule Trimless | 1222 | 224L x 110W x 154H | 70 | 5960 | 3000 | 95 | 15 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule Trimless | 1222 | 224L x 110W x 154H | 70 | 5960 | 3000 | 95 | 10 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule Trimless | 1222 | 224L x 110W x 154H | 70 | 5810 | 2700 | 95 | 60 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule Trimless | 1222 | 224L x 110W x 154H | 70 | 5810 | 2700 | 95 | 24 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule Trimless | 1222 | 224L x 110W x 154H | 70 | 5810 | 2700 | 95 | 38 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule Trimless | 1222 | 224L x 110W x 154H | 70 | 5810 | 2700 | 95 | 15 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule Trimless | 1222 | 224L x 110W x 154H | 70 | 5810 | 2700 | 95 | 10 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|

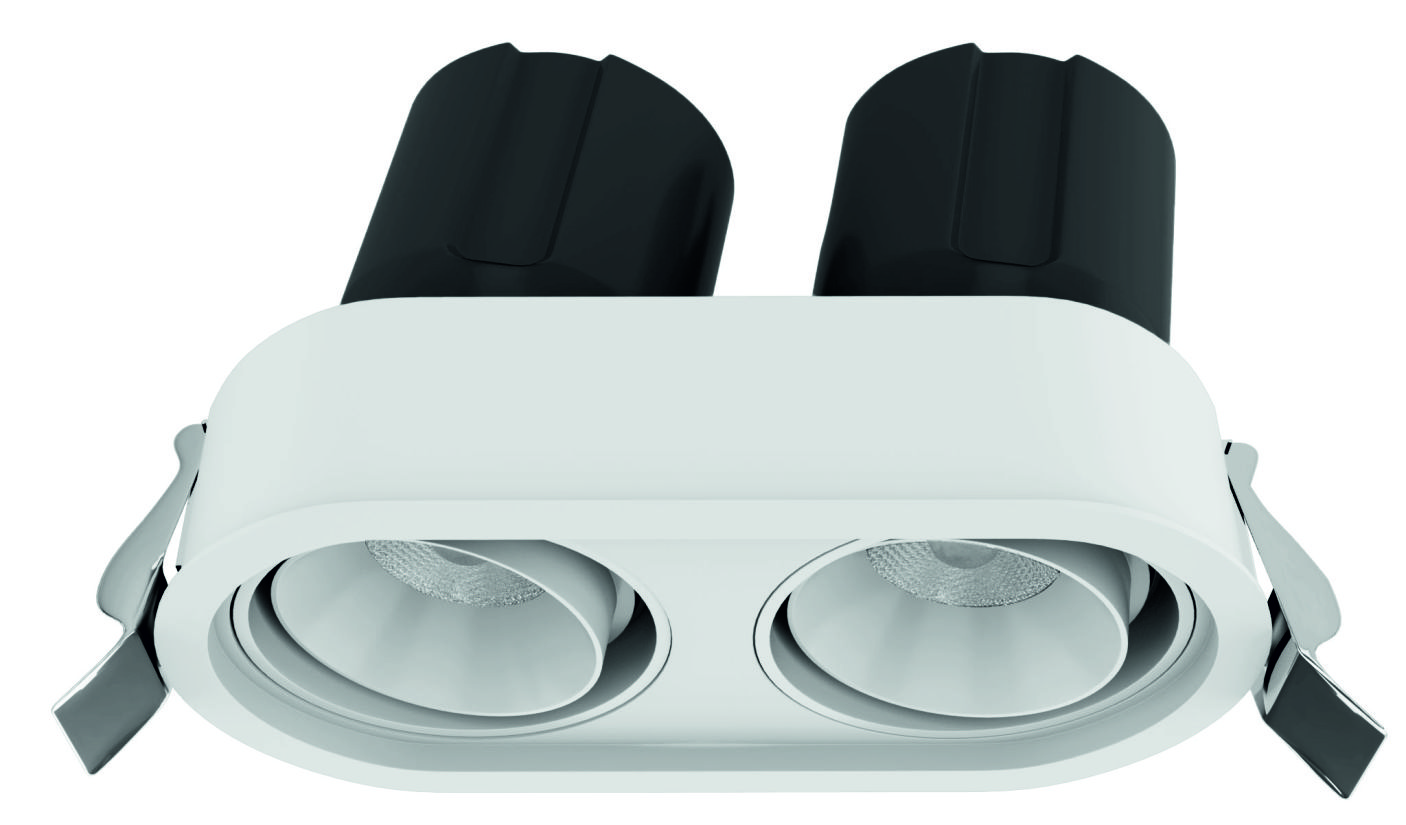

Tenace Swivel - Capsule | 1215 | 140L x 78W x 90H | 14 | 1240 | 4000 | 95 | 60 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule | 1215 | 140L x 78W x 90H | 14 | 1240 | 4000 | 95 | 38 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule | 1215 | 140L x 78W x 90H | 14 | 1240 | 4000 | 95 | 24 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule | 1215 | 140L x 78W x 90H | 14 | 1240 | 4000 | 95 | 10 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule | 1215 | 140L x 78W x 90H | 14 | 1240 | 4000 | 95 | 15 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule | 1215 | 140L x 78W x 90H | 14 | 1200 | 3000 | 95 | 60 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule | 1215 | 140L x 78W x 90H | 14 | 1200 | 3000 | 95 | 38 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule | 1215 | 140L x 78W x 90H | 14 | 1200 | 3000 | 95 | 24 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule | 1215 | 140L x 78W x 90H | 14 | 1200 | 3000 | 95 | 15 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule | 1215 | 140L x 78W x 90H | 14 | 1200 | 3000 | 95 | 10 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule | 1215 | 140L x 78W x 90H | 14 | 1170 | 2700 | 95 | 60 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule | 1215 | 140L x 78W x 90H | 14 | 1170 | 2700 | 95 | 38 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule | 1215 | 140L x 78W x 90H | 14 | 1170 | 2700 | 95 | 24 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule | 1215 | 140L x 78W x 90H | 14 | 1170 | 2700 | 95 | 15 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule | 1215 | 140L x 78W x 90H | 14 | 1170 | 2700 | 95 | 10 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule | 1218 | 193L x 104W x 123H | 40 | 3490 | 4000 | 95 | 60 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule | 1218 | 193L x 104W x 123H | 40 | 3490 | 4000 | 95 | 38 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule | 1218 | 193L x 104W x 123H | 40 | 3490 | 4000 | 95 | 24 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule | 1218 | 193L x 104W x 123H | 40 | 3490 | 4000 | 95 | 15 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule | 1218 | 193L x 104W x 123H | 40 | 3490 | 4000 | 95 | 10 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule | 1218 | 193L x 104W x 123H | 40 | 3380 | 3000 | 95 | 38 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule | 1218 | 193L x 104W x 123H | 40 | 3380 | 3000 | 95 | 60 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule | 1218 | 193L x 104W x 123H | 40 | 3380 | 3000 | 95 | 24 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule | 1218 | 193L x 104W x 123H | 40 | 3380 | 3000 | 95 | 15 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule | 1218 | 193L x 104W x 123H | 40 | 3380 | 3000 | 95 | 10 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule | 1218 | 193L x 104W x 123H | 40 | 3300 | 2700 | 95 | 60 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule | 1218 | 193L x 104W x 123H | 40 | 3300 | 2700 | 95 | 38 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule | 1218 | 193L x 104W x 123H | 40 | 3300 | 2700 | 95 | 24 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule | 1218 | 193L x 104W x 123H | 40 | 3300 | 2700 | 95 | 15 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule | 1218 | 193L x 104W x 123H | 40 | 3300 | 2700 | 95 | 10 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule | 1218 | 193L x 104W x 123H | 24 | 2100 | 4000 | 95 | 60 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule | 1218 | 193L x 104W x 123H | 24 | 2100 | 4000 | 95 | 38 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule | 1218 | 193L x 104W x 123H | 24 | 2100 | 4000 | 95 | 24 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule | 1218 | 193L x 104W x 123H | 24 | 2100 | 4000 | 95 | 15 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule | 1218 | 193L x 104W x 123H | 24 | 2100 | 4000 | 95 | 10 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule | 1218 | 193L x 104W x 123H | 24 | 2030 | 3000 | 95 | 60 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule | 1218 | 193L x 104W x 123H | 24 | 2030 | 3000 | 95 | 38 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule | 1218 | 193L x 104W x 123H | 24 | 2030 | 3000 | 95 | 24 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule | 1218 | 193L x 104W x 123H | 24 | 2030 | 3000 | 95 | 15 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule | 1218 | 193L x 104W x 123H | 24 | 2030 | 3000 | 95 | 10 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule | 1218 | 193L x 104W x 123H | 24 | 1980 | 2700 | 95 | 60 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule | 1218 | 193L x 104W x 123H | 24 | 1980 | 2700 | 95 | 38 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule | 1218 | 193L x 104W x 123H | 24 | 1980 | 2700 | 95 | 24 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule | 1218 | 193L x 104W x 123H | 24 | 1980 | 2700 | 95 | 15 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule | 1218 | 193L x 104W x 123H | 24 | 1980 | 2700 | 95 | 10 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|

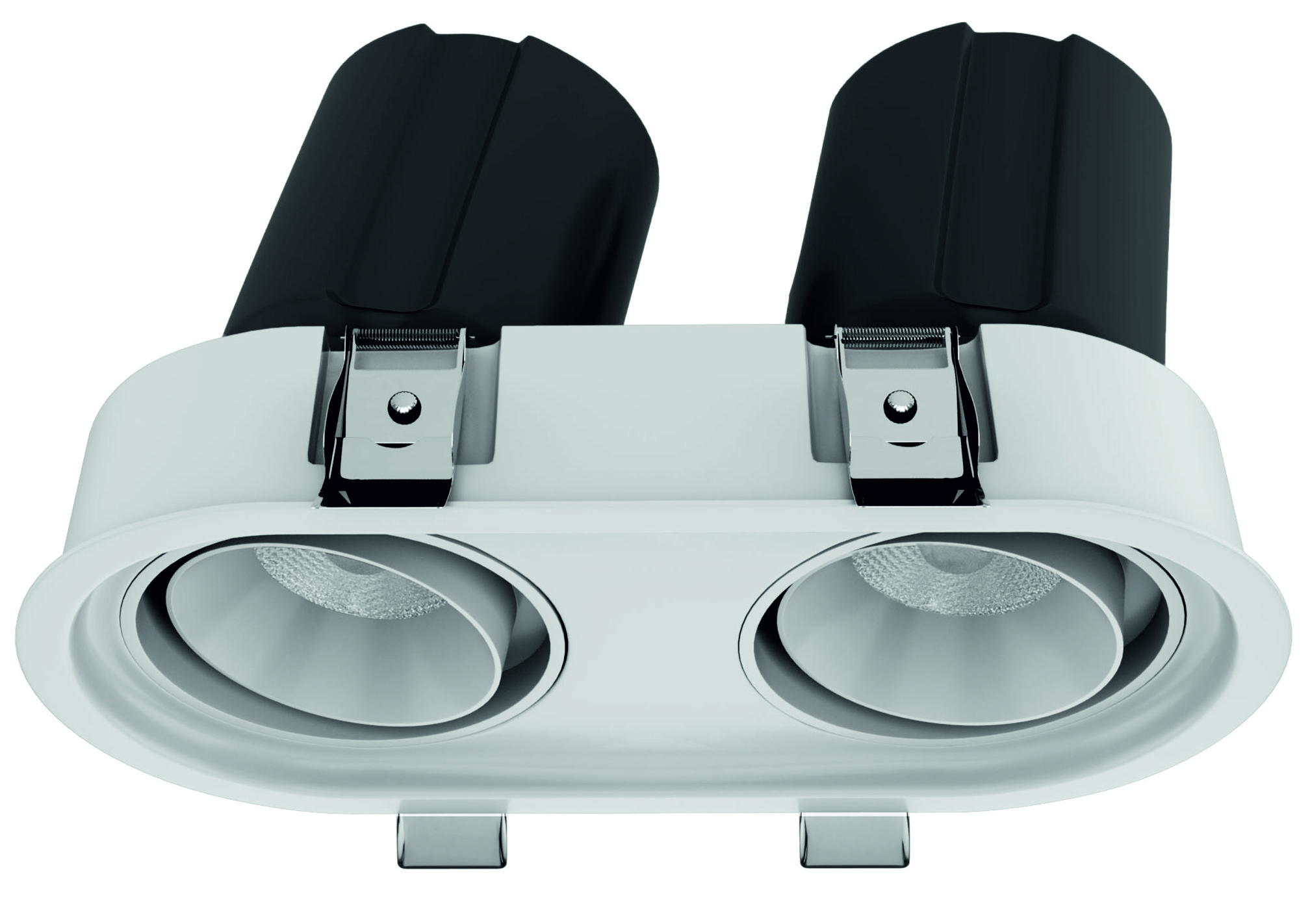

Tenace Swivel - Capsule | 1221 | 238L x 124W x 154H | 70 | 6130 | 4000 | 95 | 60 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule | 1221 | 238L x 124W x 154H | 70 | 6130 | 4000 | 95 | 38 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule | 1221 | 238L x 124W x 154H | 70 | 6130 | 4000 | 95 | 15 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule | 1221 | 238L x 124W x 154H | 70 | 6130 | 4000 | 95 | 24 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule | 1221 | 238L x 124W x 154H | 70 | 6130 | 4000 | 95 | 10 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule | 1221 | 238L x 124W x 154H | 70 | 5960 | 3000 | 95 | 60 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule | 1221 | 238L x 124W x 154H | 70 | 5960 | 3000 | 95 | 38 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule | 1221 | 238L x 124W x 154H | 70 | 5960 | 3000 | 95 | 24 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule | 1221 | 238L x 124W x 154H | 70 | 5960 | 3000 | 95 | 10 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule | 1221 | 238L x 124W x 154H | 70 | 5960 | 3000 | 95 | 15 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule | 1221 | 238L x 124W x 154H | 70 | 5810 | 2700 | 95 | 60 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule | 1221 | 238L x 124W x 154H | 70 | 5810 | 2700 | 95 | 38 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule | 1221 | 238L x 124W x 154H | 70 | 5810 | 2700 | 95 | 24 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule | 1221 | 238L x 124W x 154H | 70 | 5810 | 2700 | 95 | 15 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Capsule | 1221 | 238L x 124W x 154H | 70 | 5810 | 2700 | 95 | 10 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
