Unique Aesthetic
Asymmetric Side Box placement creates a modern, distinctive visual profile.

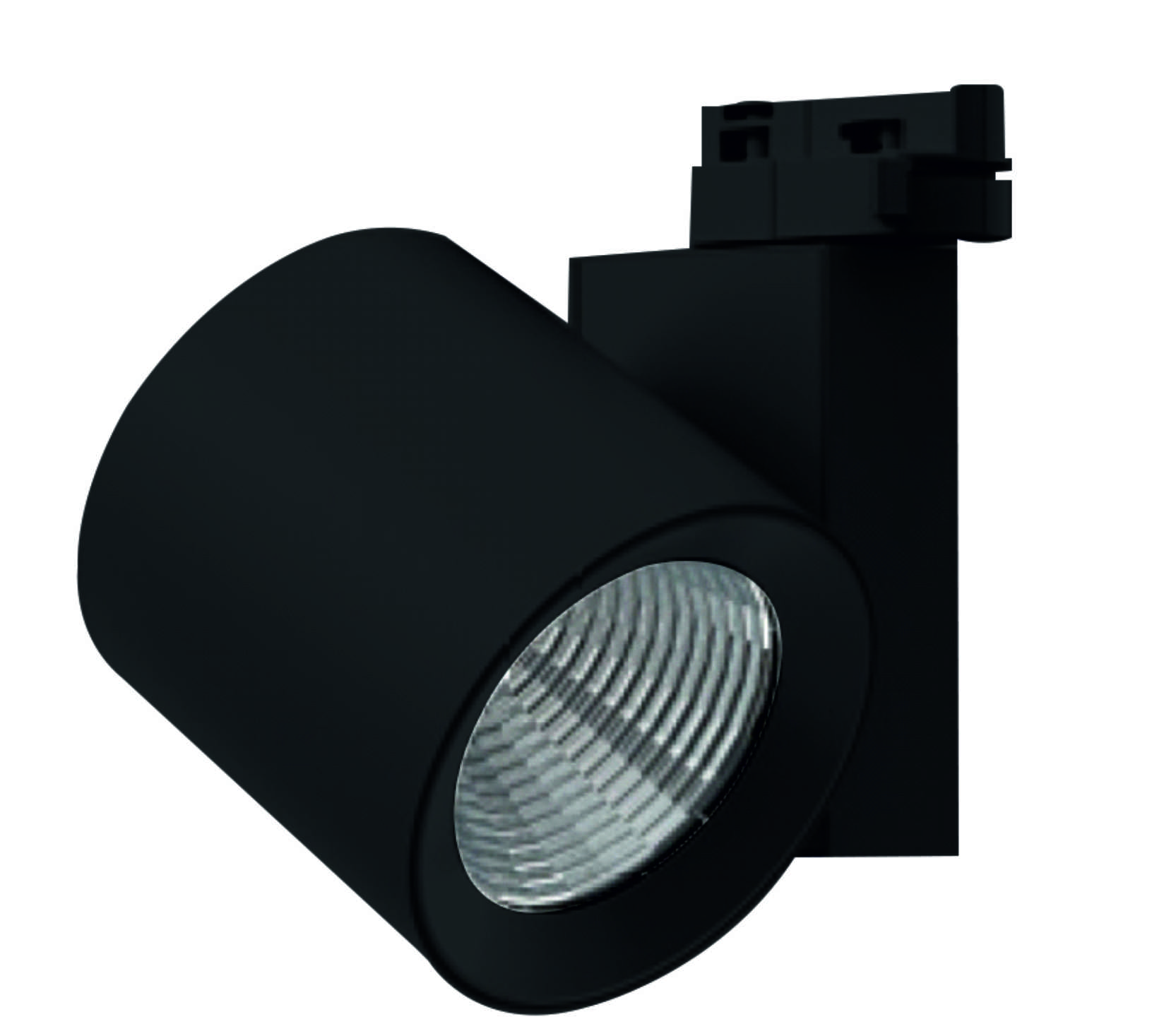

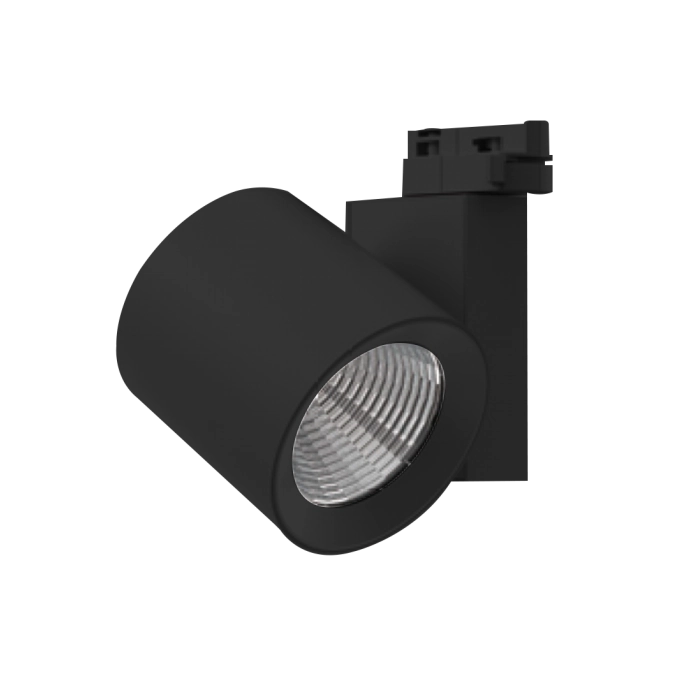

The Ace Side Box features an innovative design where the driver housing is mounted to the side of the cylindrical light body, creating a striking, modern, and asymmetric profile. This unique look makes a bold design statement while offering the same high thermal efficiency as the Top Box. It is the perfect accent lighting solution for contemporary spaces looking to merge high performance with an unconventional, avant-garde aesthetic
| Model | Model Name | Model No | Size | Wattage | Lumens | CCT | CRI | Beam Angle | IP Rating | Accessories | Dimming Option | Specssheet | 2D | 3D | Installation Manual |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Trinsic Ace Side Box | 1611 | Dia 73 x H 157mm | 18 | 1476 | 2700 | 95 | 15 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Ace Side Box | 1611 | Dia 73 x H 157mm | 18 | 1476 | 2700 | 95 | 24 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Ace Side Box | 1611 | Dia 73 x H 157mm | 18 | 1476 | 2700 | 95 | 38 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Ace Side Box | 1611 | Dia 73 x H 157mm | 18 | 1476 | 2700 | 95 | 45 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Ace Side Box | 1611 | Dia 73 x H 157mm | 18 | 1558 | 3000 | 95 | 15 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Ace Side Box | 1611 | Dia 73 x H 157mm | 18 | 1558 | 3000 | 95 | 24 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Ace Side Box | 1611 | Dia 73 x H 157mm | 18 | 1558 | 3000 | 95 | 38 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Ace Side Box | 1611 | Dia 73 x H 157mm | 18 | 1558 | 3000 | 95 | 45 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Ace Side Box | 1611 | Dia 73 x H 157mm | 18 | 1640 | 4000 | 95 | 15 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Ace Side Box | 1611 | Dia 73 x H 157mm | 18 | 1640 | 4000 | 95 | 24 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Ace Side Box | 1611 | Dia 73 x H 157mm | 18 | 1640 | 4000 | 95 | 38 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Ace Side Box | 1611 | Dia 73 x H 157mm | 18 | 1640 | 4000 | 95 | 45 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Ace Side Box | 1612 | Dia 83 x H 157mm | 25 | 1945 | 2700 | 95 | 15 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Ace Side Box | 1612 | Dia 83 x H 157mm | 25 | 1945 | 2700 | 95 | 24 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Ace Side Box | 1612 | Dia 83 x H 157mm | 25 | 1945 | 2700 | 95 | 38 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Ace Side Box | 1612 | Dia 83 x H 157mm | 25 | 1945 | 2700 | 95 | 45 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Ace Side Box | 1612 | Dia 83 x H 157mm | 25 | 1995 | 3000 | 95 | 15 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Ace Side Box | 1612 | Dia 83 x H 157mm | 25 | 1995 | 3000 | 95 | 24 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Ace Side Box | 1612 | Dia 83 x H 157mm | 25 | 1995 | 3000 | 95 | 38 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Ace Side Box | 1612 | Dia 83 x H 157mm | 25 | 1995 | 3000 | 95 | 45 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Ace Side Box | 1612 | Dia 83 x H 157mm | 25 | 2055 | 4000 | 95 | 15 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Ace Side Box | 1612 | Dia 83 x H 157mm | 25 | 2055 | 4000 | 95 | 24 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Ace Side Box | 1612 | Dia 83 x H 157mm | 25 | 2055 | 4000 | 95 | 38 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Ace Side Box | 1612 | Dia 83 x H 157mm | 25 | 2055 | 4000 | 95 | 45 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Ace Side Box | 1613 | Dia 96 x H 157mm | 35 | 2855 | 2700 | 95 | 15 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Ace Side Box | 1613 | Dia 96 x H 157mm | 35 | 2855 | 2700 | 95 | 24 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Ace Side Box | 1613 | Dia 96 x H 157mm | 35 | 2855 | 2700 | 95 | 38 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Ace Side Box | 1613 | Dia 96 x H 157mm | 35 | 2855 | 2700 | 95 | 45 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Ace Side Box | 1613 | Dia 96 x H 157mm | 35 | 2925 | 3000 | 95 | 15 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Ace Side Box | 1613 | Dia 96 x H 157mm | 35 | 2925 | 3000 | 95 | 24 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Ace Side Box | 1613 | Dia 96 x H 157mm | 35 | 2925 | 3000 | 95 | 38 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Ace Side Box | 1613 | Dia 96 x H 157mm | 35 | 2925 | 3000 | 95 | 45 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Ace Side Box | 1613 | Dia 96 x H 157mm | 35 | 3015 | 4000 | 95 | 15 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Ace Side Box | 1613 | Dia 96 x H 157mm | 35 | 3015 | 4000 | 95 | 24 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Ace Side Box | 1613 | Dia 96 x H 157mm | 35 | 3015 | 4000 | 95 | 38 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Ace Side Box | 1613 | Dia 96 x H 157mm | 35 | 3015 | 4000 | 95 | 45 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Ace Side Box | 1614 | Dia 105 x H 157mm | 40 | 3280 | 2700 | 95 | 24 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Ace Side Box | 1614 | Dia 105 x H 157mm | 40 | 3280 | 2700 | 95 | 45 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Ace Side Box | 1614 | Dia 105 x H 157mm | 40 | 3362 | 3000 | 95 | 24 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Ace Side Box | 1614 | Dia 105 x H 157mm | 40 | 3362 | 3000 | 95 | 45 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Ace Side Box | 1614 | Dia 105 x H 157mm | 40 | 3444 | 4000 | 95 | 24 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Ace Side Box | 1614 | Dia 105 x H 157mm | 40 | 3444 | 4000 | 95 | 45 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
