Adjustable Output

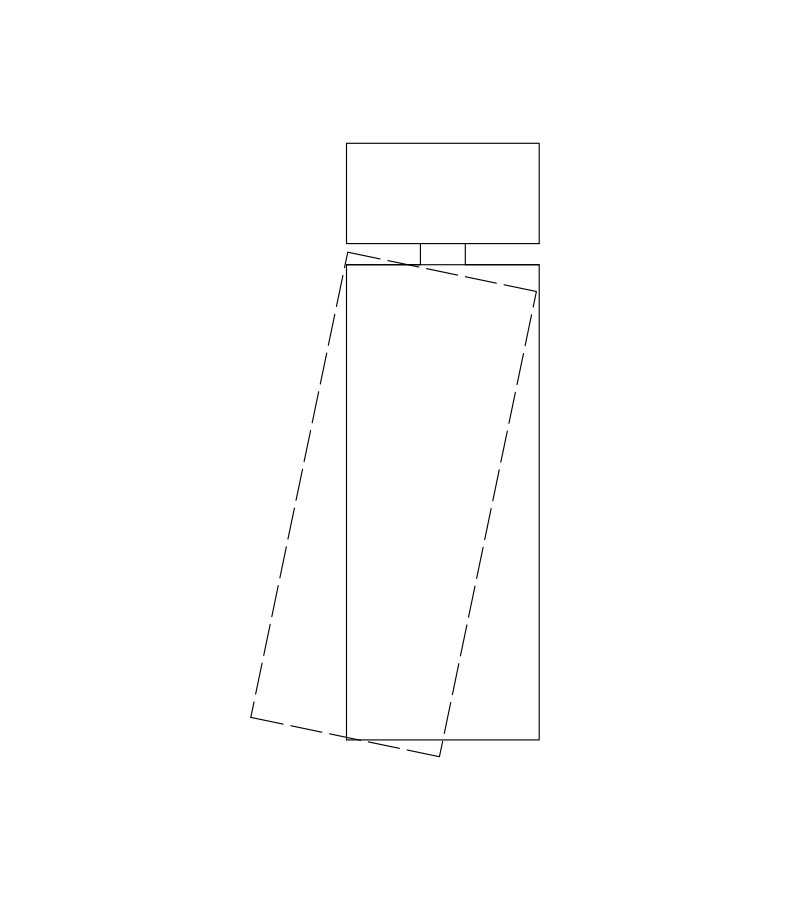

Offers Tilt & Rotate movement from a fixed surface position.
The Trinsic Surface Tilt is a fixed-base cylinder that provides highly functional, adjustable lighting from a surface-mounted position. Combining the simplicity of direct mounting with the precision of Tilt & Rotate functionality, this fixture is an ideal solution for concrete ceilings or areas where recessed lighting is impossible. It is a powerful, yet elegant, directional spot light
| Model | Model Name | Model No | Size | Wattage | Lumens | CCT | CRI | Beam Angle | IP Rating | Accessories | Dimming Option | Specssheet | 2D | 3D | Installation Manual |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Trinsic Surface Tilt | 1290 | Dia 57 x H 144mm | 7 | 570 | 2700 | 95 | 10 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Surface Tilt | 1290 | Dia 57 x H 144mm | 7 | 570 | 2700 | 95 | 15 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Surface Tilt | 1290 | Dia 57 x H 144mm | 7 | 570 | 2700 | 95 | 24 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Surface Tilt | 1290 | Dia 57 x H 144mm | 7 | 570 | 2700 | 95 | 38 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Surface Tilt | 1290 | Dia 57 x H 144mm | 7 | 585 | 3000 | 95 | 10 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Surface Tilt | 1290 | Dia 57 x H 144mm | 7 | 585 | 3000 | 95 | 15 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Surface Tilt | 1290 | Dia 57 x H 144mm | 7 | 585 | 3000 | 95 | 24 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Surface Tilt | 1290 | Dia 57 x H 144mm | 7 | 585 | 3000 | 95 | 38 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Surface Tilt | 1290 | Dia 57 x H 144mm | 7 | 605 | 4000 | 95 | 10 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Surface Tilt | 1290 | Dia 57 x H 144mm | 7 | 605 | 4000 | 95 | 15 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Surface Tilt | 1290 | Dia 57 x H 144mm | 7 | 605 | 4000 | 95 | 24 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Surface Tilt | 1290 | Dia 57 x H 144mm | 7 | 605 | 4000 | 95 | 38 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Surface Tilt | 1291 | Dia 57 x H 196mm | 15 | 1230 | 2700 | 95 | 15 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Surface Tilt | 1291 | Dia 57 x H 196mm | 15 | 1230 | 2700 | 95 | 24 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Surface Tilt | 1291 | Dia 57 x H 196mm | 15 | 1230 | 2700 | 95 | 38 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Surface Tilt | 1291 | Dia 57 x H 196mm | 15 | 1260 | 3000 | 95 | 15 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Surface Tilt | 1291 | Dia 57 x H 196mm | 15 | 1260 | 3000 | 95 | 24 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Surface Tilt | 1291 | Dia 57 x H 196mm | 15 | 1260 | 3000 | 95 | 38 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Surface Tilt | 1291 | Dia 57 x H 196mm | 15 | 1300 | 4000 | 95 | 15 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Surface Tilt | 1291 | Dia 57 x H 196mm | 15 | 1300 | 4000 | 95 | 24 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Surface Tilt | 1291 | Dia 57 x H 196mm | 15 | 1300 | 4000 | 95 | 38 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Surface Tilt | 1292 | Dia 73 x H 226mm | 25 | 1945 | 2700 | 95 | 15 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Surface Tilt | 1292 | Dia 73 x H 226mm | 25 | 1945 | 2700 | 95 | 24 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Surface Tilt | 1292 | Dia 73 x H 226mm | 25 | 1945 | 2700 | 95 | 38 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Surface Tilt | 1292 | Dia 73 x H 226mm | 25 | 1995 | 3000 | 95 | 15 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Surface Tilt | 1292 | Dia 73 x H 226mm | 25 | 1995 | 3000 | 95 | 24 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Surface Tilt | 1292 | Dia 73 x H 226mm | 25 | 1995 | 3000 | 95 | 38 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Surface Tilt | 1292 | Dia 73 x H 226mm | 25 | 2055 | 4000 | 95 | 15 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Surface Tilt | 1292 | Dia 73 x H 226mm | 25 | 2055 | 4000 | 95 | 24 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Surface Tilt | 1292 | Dia 73 x H 226mm | 25 | 2055 | 4000 | 95 | 38 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Surface Tilt | 1293 | Dia 84 x H 246mm | 35 | 2855 | 2700 | 95 | 15 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Surface Tilt | 1293 | Dia 84 x H 246mm | 35 | 2855 | 2700 | 95 | 24 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Surface Tilt | 1293 | Dia 84 x H 246mm | 35 | 2855 | 2700 | 95 | 38 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Surface Tilt | 1293 | Dia 84 x H 246mm | 35 | 2925 | 3000 | 95 | 15 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Surface Tilt | 1293 | Dia 84 x H 246mm | 35 | 2925 | 3000 | 95 | 24 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Surface Tilt | 1293 | Dia 84 x H 246mm | 35 | 2925 | 3000 | 95 | 38 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Surface Tilt | 1293 | Dia 84 x H 246mm | 35 | 3015 | 4000 | 95 | 15 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Surface Tilt | 1293 | Dia 84 x H 246mm | 35 | 3015 | 4000 | 95 | 24 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Surface Tilt | 1293 | Dia 84 x H 246mm | 35 | 3015 | 4000 | 95 | 38 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
